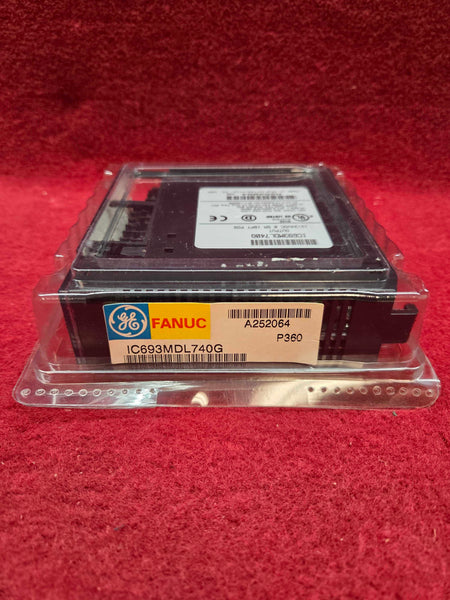

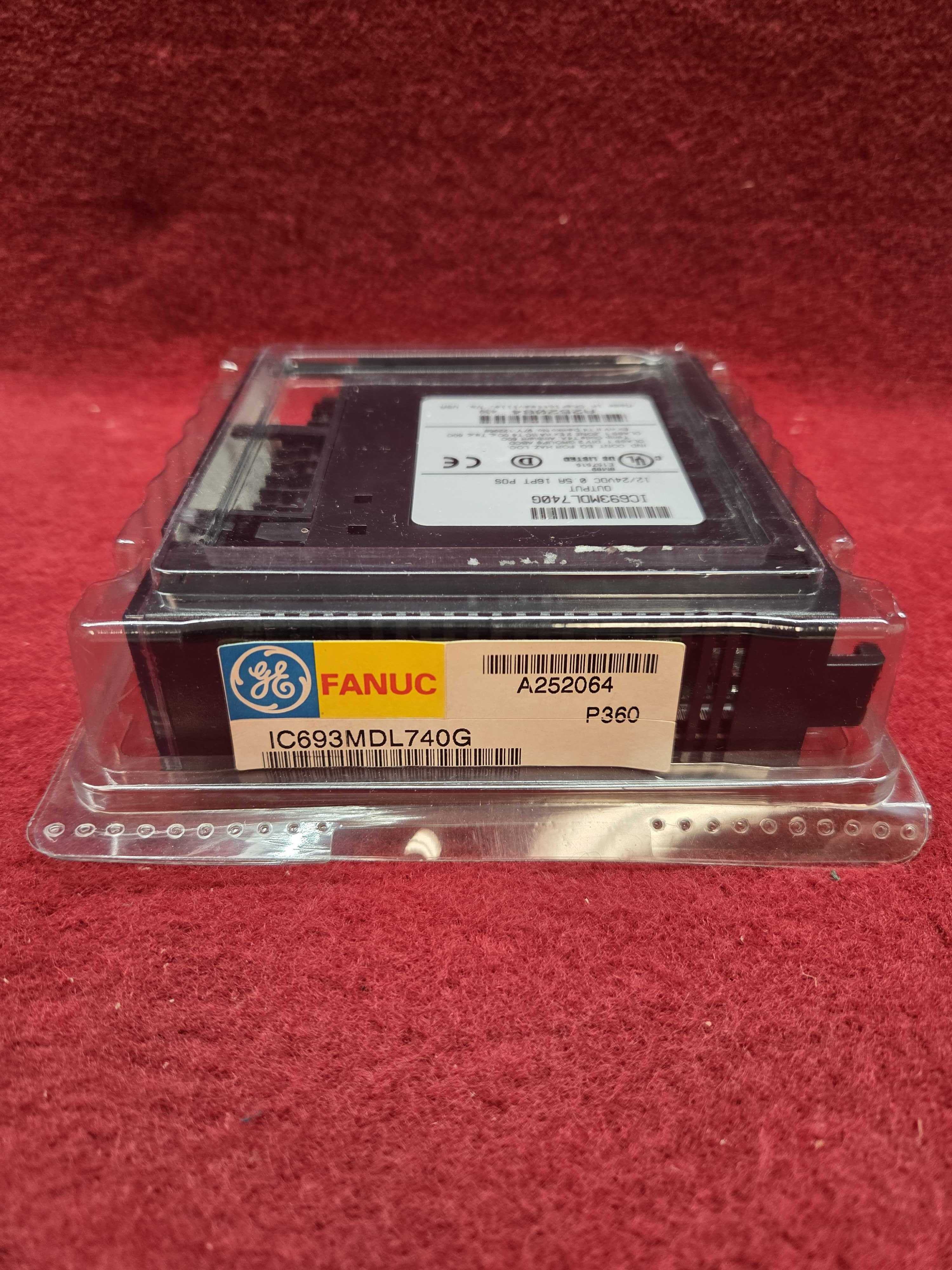

The GE Fanuc 90-30 Series IC693MDL740 is a robust 12/24V positive logic DC output module designed for industrial automation applications. This module sources current from the positive power bus terminal or the common user directly to the connected loads, ensuring reliable operation. It features 16 output points, organized into two groups of eight outputs, each with a dedicated common pin. The module accommodates an output current of up to 0.5 amps per point, and a maximum of 2 amps per common, suitable for various field devices powered by an external supply.

Constructed with a hinged door, the IC693MDL740 allows easy access for wiring information stored on the inner surface, while the outer surface displays key identification details, including a blue indicator signifying low voltage compatibility. The module includes an LED status indicator featuring two rows of green lights labeled A1 and B1, providing real-time feedback on circuit status. The IC693MDL740 can be installed in any input or output slot within a GE Fanuc 90-30 Programmable Logic Control (PLC) system, making it versatile for many control system configurations. This module is designed to operate within an ambient temperature range of 32 to 140 degrees Fahrenheit and can be stored in environments from -40 to 185 degrees Fahrenheit, maintaining performance in challenging conditions. The unit supports a relative humidity range of 5 to 95% (non-condensing) and draws a peak current of 110 milliamps. With a voltage range of 12 to 24 volts DC (+20%, -15%), the IC693MDL740 is an essential component for reliable output power management in automated solutions.
