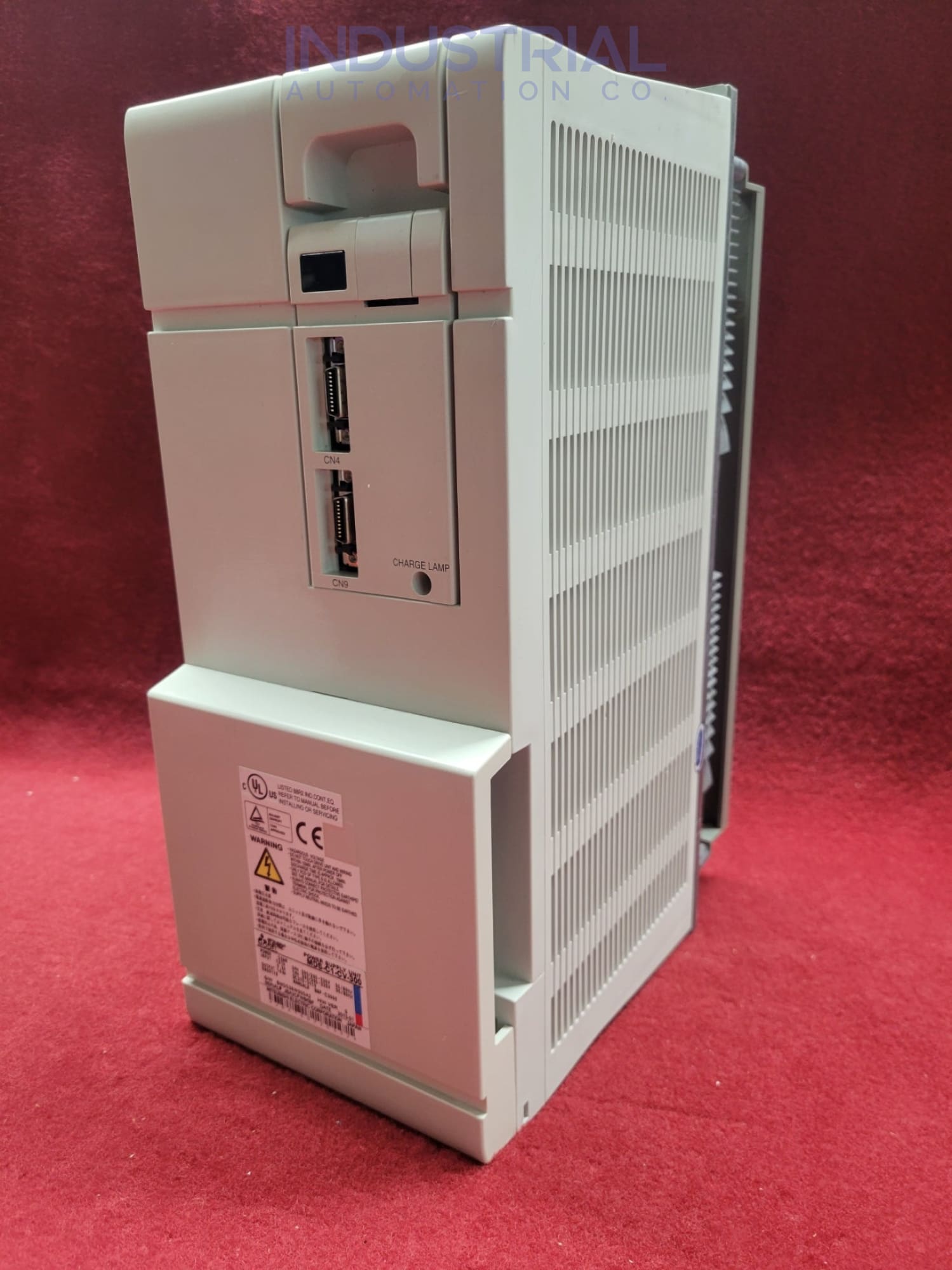

Mitsubishi MDS-C1-CV-300
Mitsubishi MDS-C1-CV-300
The Mitsubishi MDS-C1-CV-300 model operates at a frequency of 50/60 Hz with an input current of 107 A. This power regeneration type power supply provides an output voltage range of 270-311 VDC and an output current of 144 A. The control power supply has a maximum capacity of 0.2 A.
Technical Specifications:
This unit features a converter with a power regeneration circuit. The intelligent power module is incorporated. Its structure is fully enclosed with protection ratings of IP65 and IP67. The MDS-C1-CV-300 has a rated output of 30.0 kW. It measures 380 x 150 x 255 mm (H x W x D) and weighs 9.5 kg.
The input voltage for this power supply ranges from 200 to 230 VAC. Its noise level is less than 55 dB. The operational ambient temperature ranges from 0 to 55 °C. For storage and transportation, the temperature ranges from -15 to 70 °C.
The operational ambient humidity is 90% RH or less, non-condensing. The cooling type is forced air cooling. The vibration level is 4.9 m/s ² (0.5G), and the impact level is 49 m/s ² (5G).
Environmental Conditions:
The atmosphere should be indoors, avoiding direct sunlight, corrosive gas, flammable gas, oil mist, or dust. It is designed for various industrial applications to offer efficient energy use and reliable performance.
The fully enclosed structure provides protection and longevity, while the self-cooling feature reduces maintenance needs. The IP65 and IP67 ratings ensure operation in harsh environments. The MDS-C1-CV-300 supports high current and voltage outputs, making it suitable for demanding tasks.
The noise level of less than 55 dB ensures a quieter operation. The unit's compact dimensions allow for easy installation, and its weight of 9.5 kg facilitates manageable handling.
Operational Efficiency:
The power supply's design minimizes energy loss and improves overall efficiency. The input voltage flexibility allows it to adapt to different power sources. The control power supply ensures precise regulation, while the ambient humidity tolerance supports diverse environments.
This product is ideal for industrial settings, offering dependable performance. The Mitsubishi MDS-C1-CV-300 ensures optimal power supply and energy regeneration. The unit's design supports a broad range of applications, ensuring consistent performance under various conditions.
The product's construction and features make it suitable for environments requiring high reliability and efficiency. Its compact size and low noise operation enhance its appeal in industrial scenarios. The robust construction ensures minimal maintenance and long-lasting operation.
The MDS-C1-CV-300 from Mitsubishi stands out for its precise control and high reliability. It meets the stringent requirements of modern industrial applications. The power regeneration capability ensures efficient energy use, reducing operational costs and improving system performance. This power supply is a solid choice for industries seeking durable and efficient power solutions.
Frequently Asked Questions:
What are the dimensions and weight of the MDS-C1-CV-300?
The MDS-C1-CV-300 measures 380 x 150 x 255 mm (H x W x D) and weighs 9.5 kg. Its compact size allows for easy installation, and the weight facilitates manageable handling in various industrial applications.
What is the operational temperature range for the MDS-C1-CV-300?
The operational ambient temperature range for the MDS-C1-CV-300 is from 0 to 55 °C. This ensures optimal performance and reliability of the device within these specified temperatures.
What are the protection ratings of the MDS-C1-CV-300?
The MDS-C1-CV-300 has protection ratings of IP65 and IP67. This ensures that the unit is fully enclosed while making it suitable for operation in harsh environments with protection against dust and water.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Frequency | 50/60 Hz |
| Input Current | 107 A |
| Output Voltage | 270-311 VDC |
| Output Current | 144 A |
| Control Power Supply | Max. 0.2 A |
| Rated Output | 30.0 kW |
| Dimensions (H x W x D) | 380 x 150 x 255 mm |
| Weight | 9.5 kg |
| Input Voltage | 200/200-230 VAC |
| Noise | Less than 55 dB |
