Description

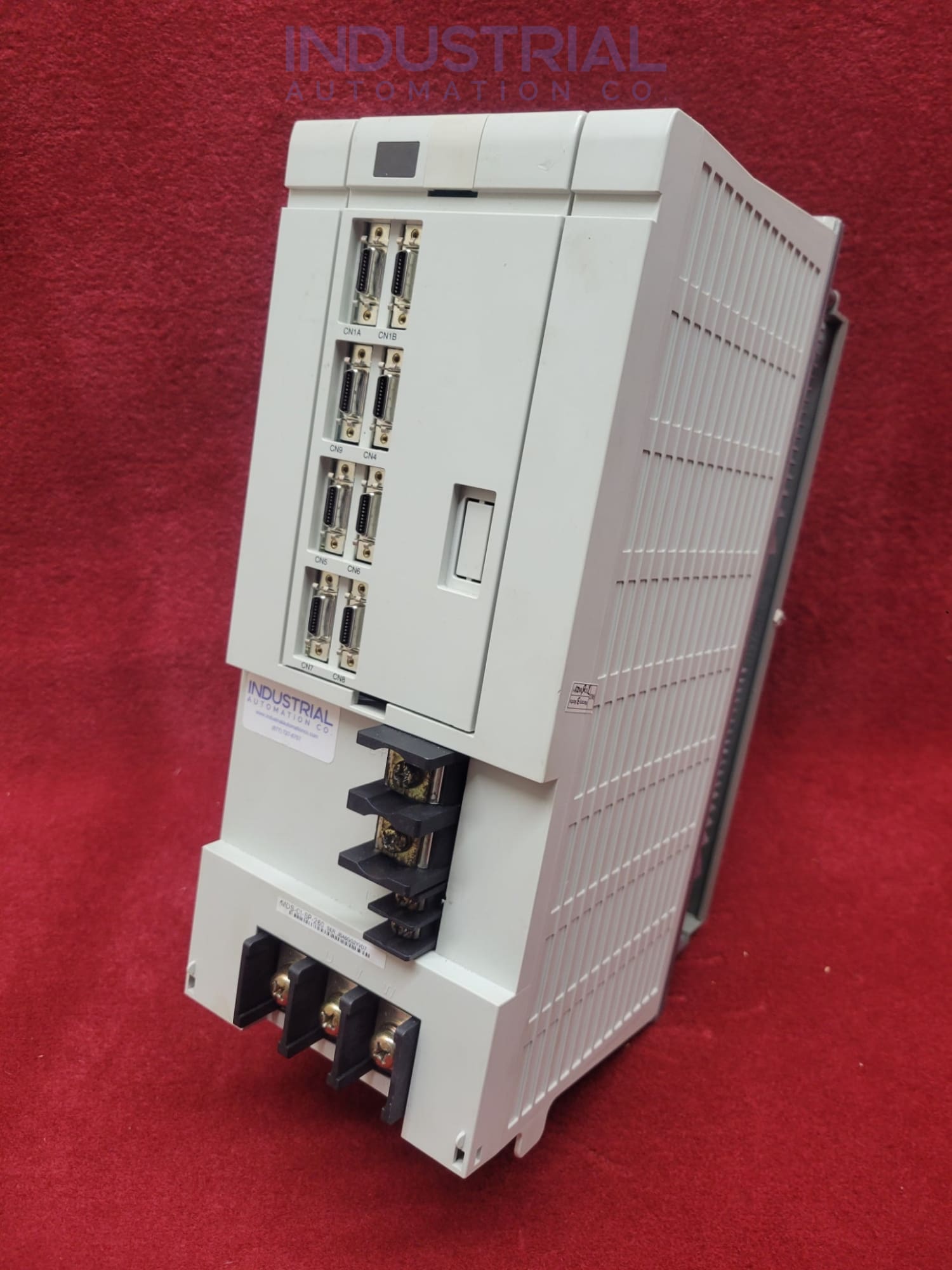

Mitsubishi MDS-C1-SP-260

The Mitsubishi MDS-C1-SP-260 is an efficient spindle drive. It operates efficiently at ambient temperatures ranging from 0 to 55 °C. This spindle drive is engineered for high efficiency and reliability. The model meets demanding operational requirements. Its compact and protected structure offers ease of installation and maintenance. p>

Environmental Specifications:

The spindle drive can operate and be stored at altitudes up to 1000 m. The Mitsubishi MDS-C1-SP-260 utilizes sine wave PWM control and current control methods. It features regenerative braking for improved efficiency.

The spindle drive includes external analog output channels, providing 0 to +10V outputs for speed and load meter data. The structure is protected with an IP20 rating overall and an IP00 terminal block TE1 rating. It has forced wind cooling that ensures efficient heat dissipation.

The spindle drive weighs 6.3 kg and radiates 483W of heat at rated output. It operates quietly, with noise levels below 55 dB. The control power specifications include a 200 to 230V AC voltage range and a frequency of 50/60 Hz.

It has a maximum current of 0.2A and a rush current of up to 35A. The rush conductivity time is limited to a maximum of 6ms. The MDS-C1-SP-260 provides a rated output of 22 kW. The input specifications include a rated voltage range of 270 to 311V DC and a rated current of 115A.

Power and Output Specifications:

The output specifications feature a rated voltage of 155V AC and a rated current of 97A. The spindle drive has a maximum earth leakage current of 15mA, with a typical value of 6mA. The spindle drive's design ensures reliable operation in diverse environments.

The robust protection and cooling methods enhance durability and performance. The Mitsubishi MDS-C1-SP-260 spindle drive is a reliable component for various industrial applications. The spindle drive can be stored and transported from –15 to 70 °C. It maintains a humidity tolerance of 90 % RH without dew condensation. The spindle drive is designed for environments free from corrosive gases and dust.

Its precise control methods and efficient braking system optimize performance. The external analogue outputs facilitate easy monitoring and adjustments. The noise level and heat radiation specifications ensure minimal disruption in operations.

Control and Efficiency:

The forced wind cooling system enhances its thermal management capabilities. This spindle drive is a valuable addition to any industrial setup requiring high-performance spindle control. The spindle drive's technical specifications reflect its high performance and reliability.

This Mitsubishi spindle drive is designed to meet the needs of modern industrial applications. The MDS-C1-SP-260 combines advanced control methods, efficient braking, and robust protection. Its operational and storage capabilities make it suitable for various industrial environments. The spindle drive's technical specifications highlight its superior performance and dependability.

Frequently Asked Questions:

What are the operating temperature ranges for the Mitsubishi MDS-C1-SP-260?

The Mitsubishi MDS-C1-SP-260 operates efficiently at temperatures ranging from 0 to 55 °C. It can be stored and transported in temperatures from –15 to 70 °C.

What control methods does the MDS-C1-SP-260 use?

The MDS-C1-SP-260 utilizes sine wave PWM control and current control methods. These methods ensure precise control and efficient operation. Additionally, it features regenerative braking to enhance performance.

How is the Mitsubishi MDS-C1-SP-260 cooled?

The MDS-C1-SP-260 employs a forced wind cooling system. This cooling method ensures efficient heat dissipation and maintains optimal performance.

Product Specifications Table

Attribute	Specifications
Ambient Temperature (Operation)	0 to 55 °C
Ambient Humidity	90 % RH (with no dew condensation)
Control Method	Sine wave PWM control method, current control method
Braking	Regenerative braking
External Analog Output	0 to +10V, 2ch (speed meter output, load meter output, data for various adjustments)
Structure	Protection type (IP20 overall / IP00 Terminal block TE1)
Cooling Method	Forced wind cooling (fin)
Weight	6.3 kg
Noise	Less than 55dB
Control Power Voltage	200/200 to 230AC
