Mitsubishi MDS-B-CV-260

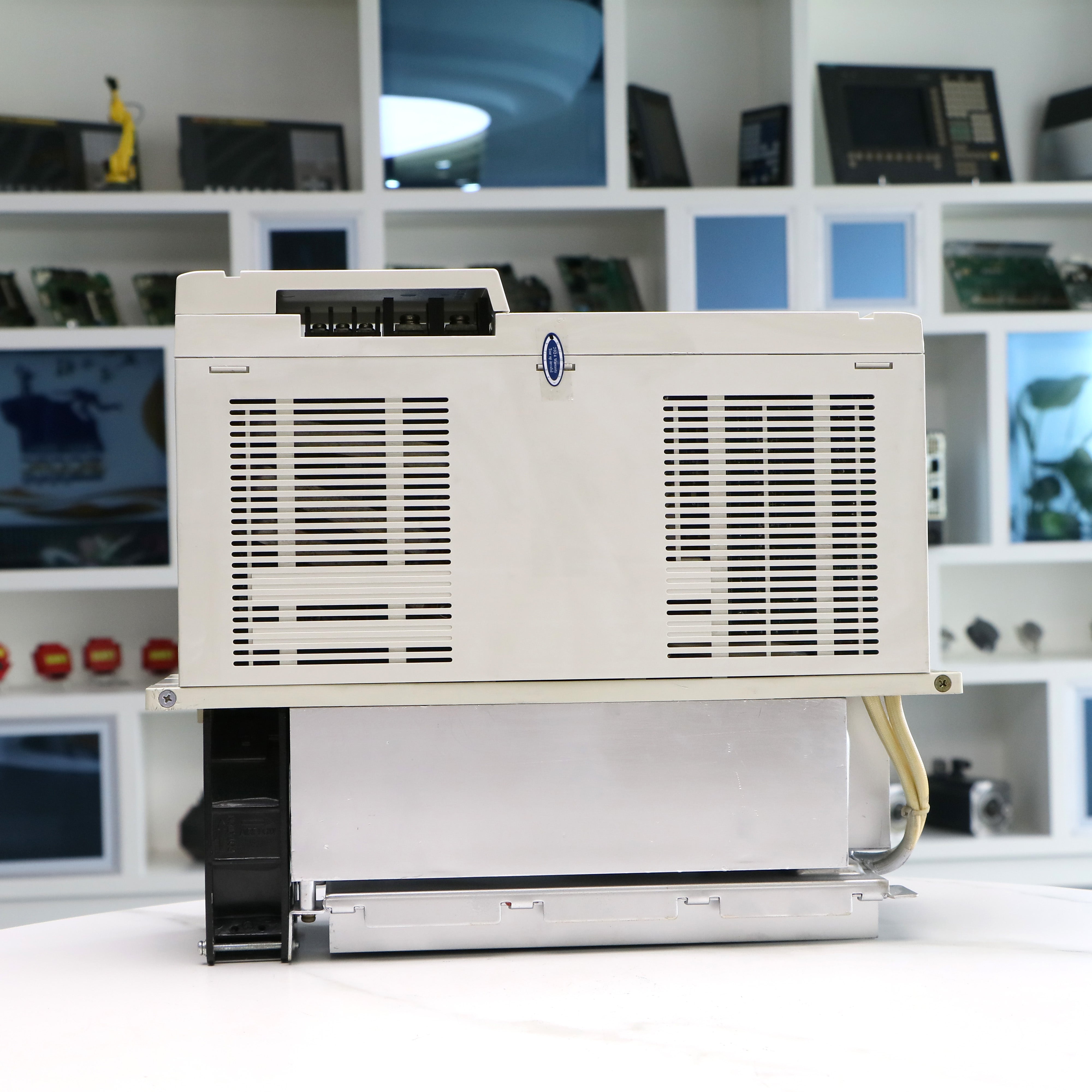

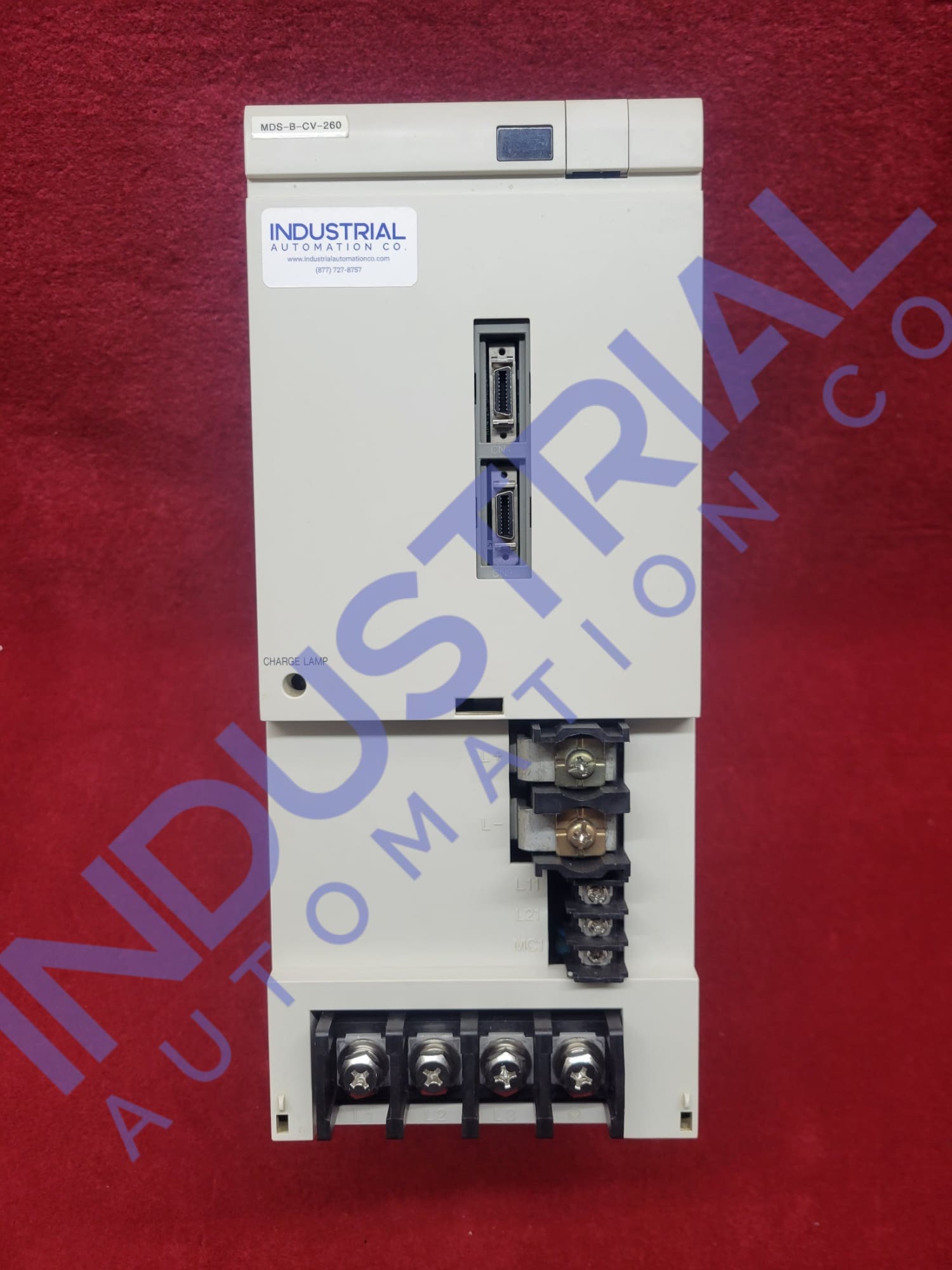

The Mitsubishi MDS-B-CV-260 power supply module can be connected to Mitsubishi MDS servo drives and spindle drives of CNC machines to deliver the DC currents Based on the drive capacity size.

Technical Details:

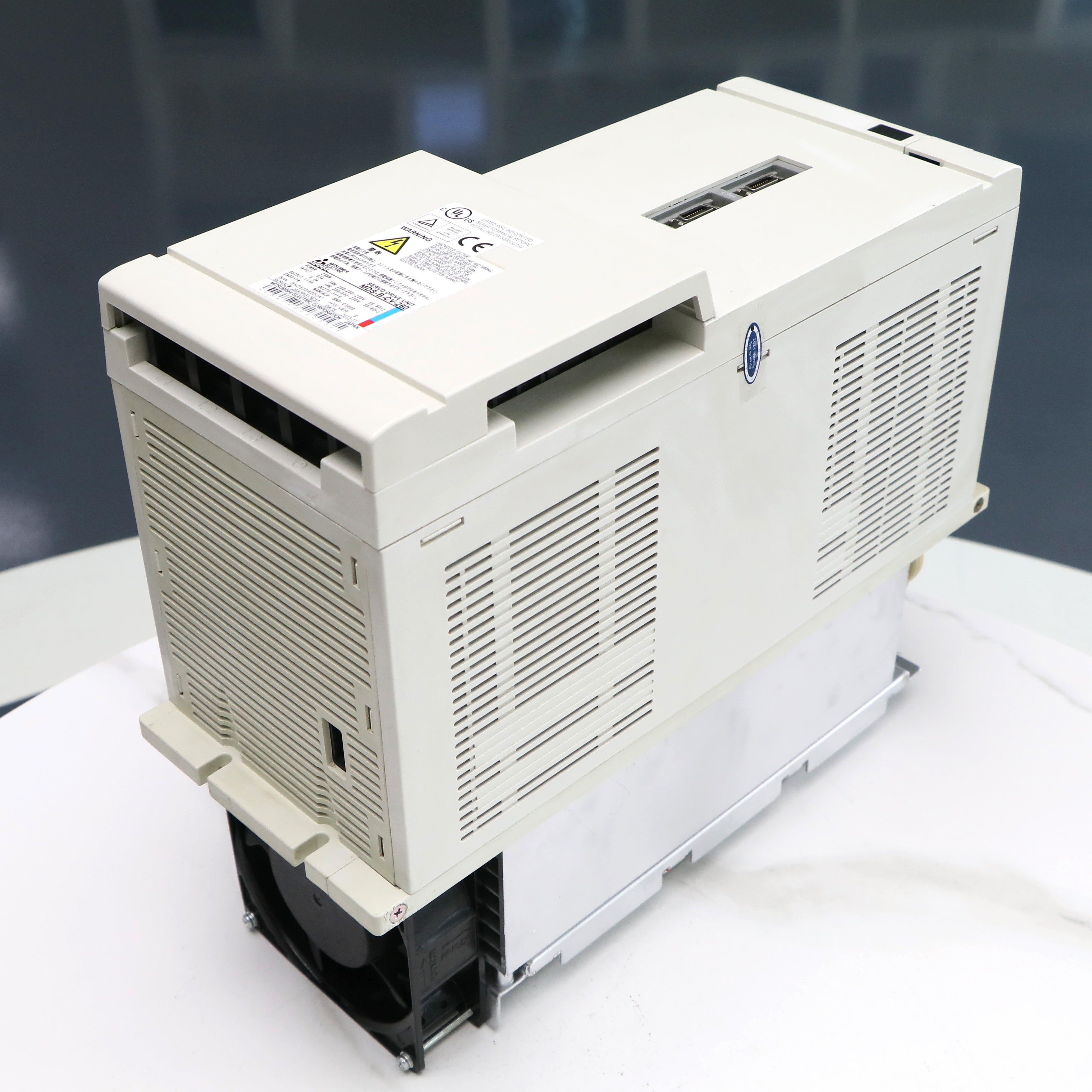

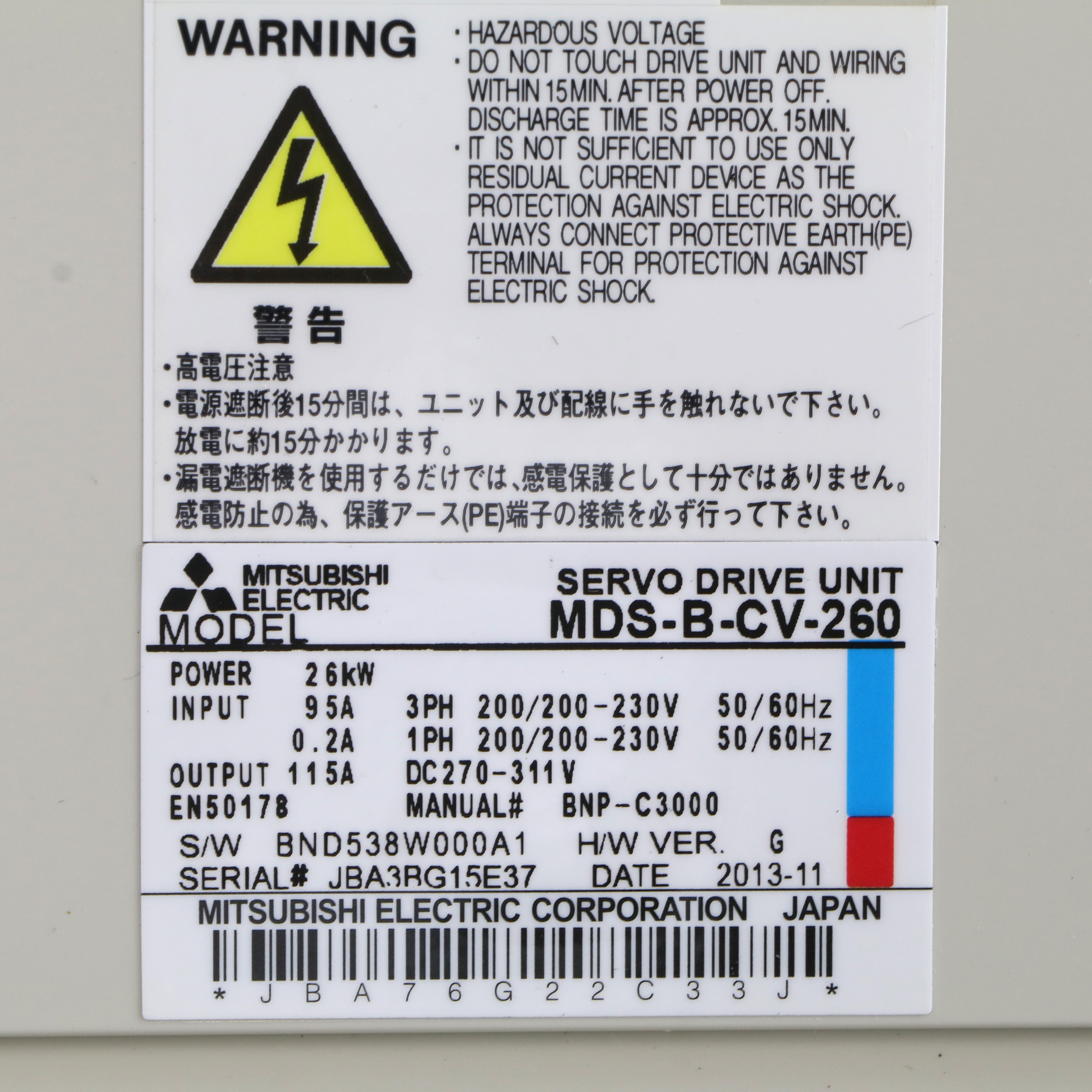

The Mitsubishi MDS-B-CV-260 power supply unit is mounted and placed next to the MDS spindle drive unit. The Mitsubishi MDS-B-CV-260 has a rated input of 3AC200-230V (95A) and a maximum rated output of DC 270-311V (115A) at a 26 kW capacity. It regulates a cooling fan to keep the unit performing at peak levels behind the scenes.

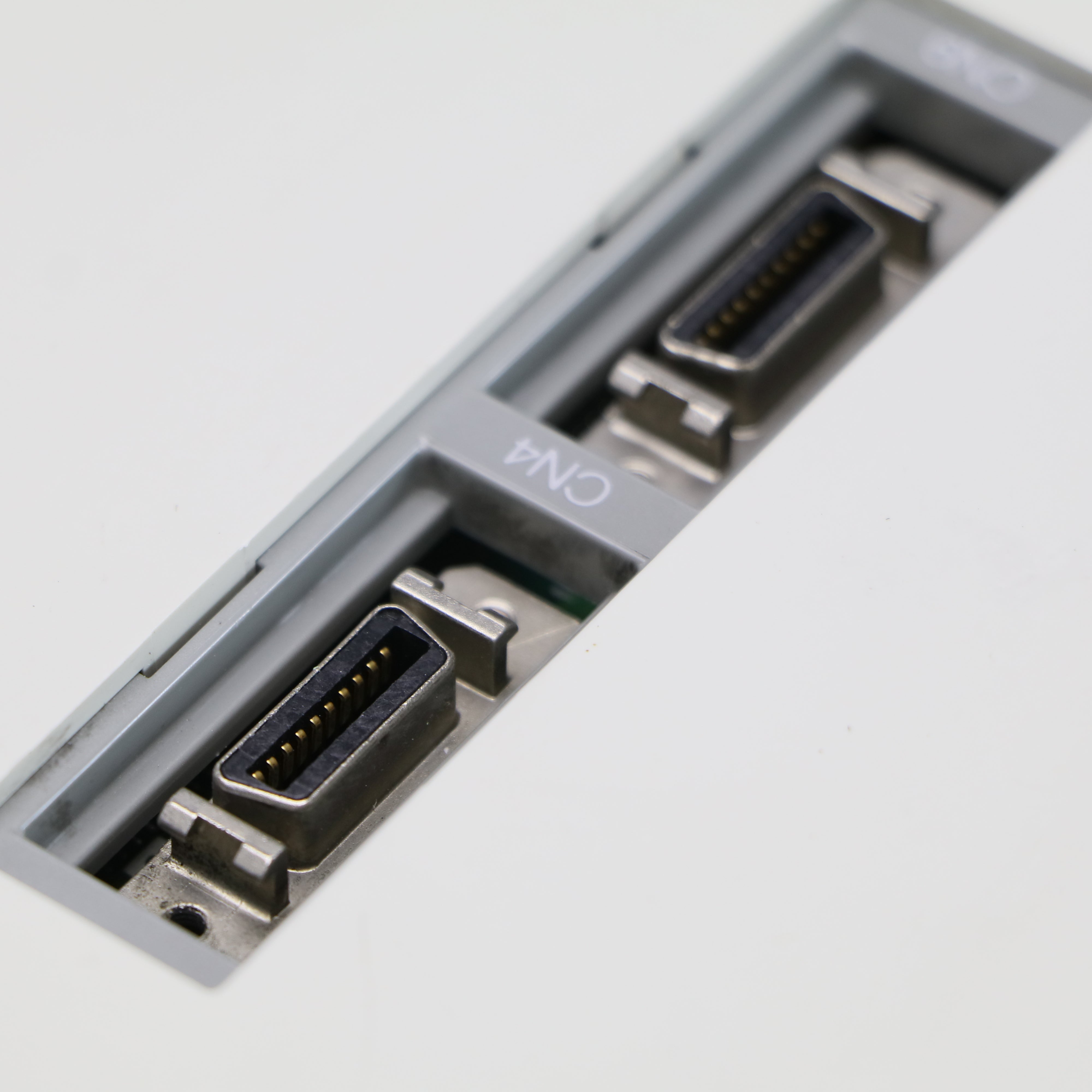

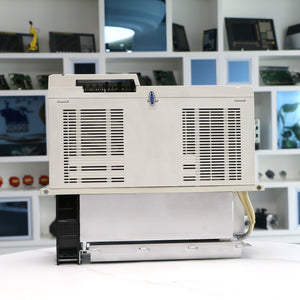

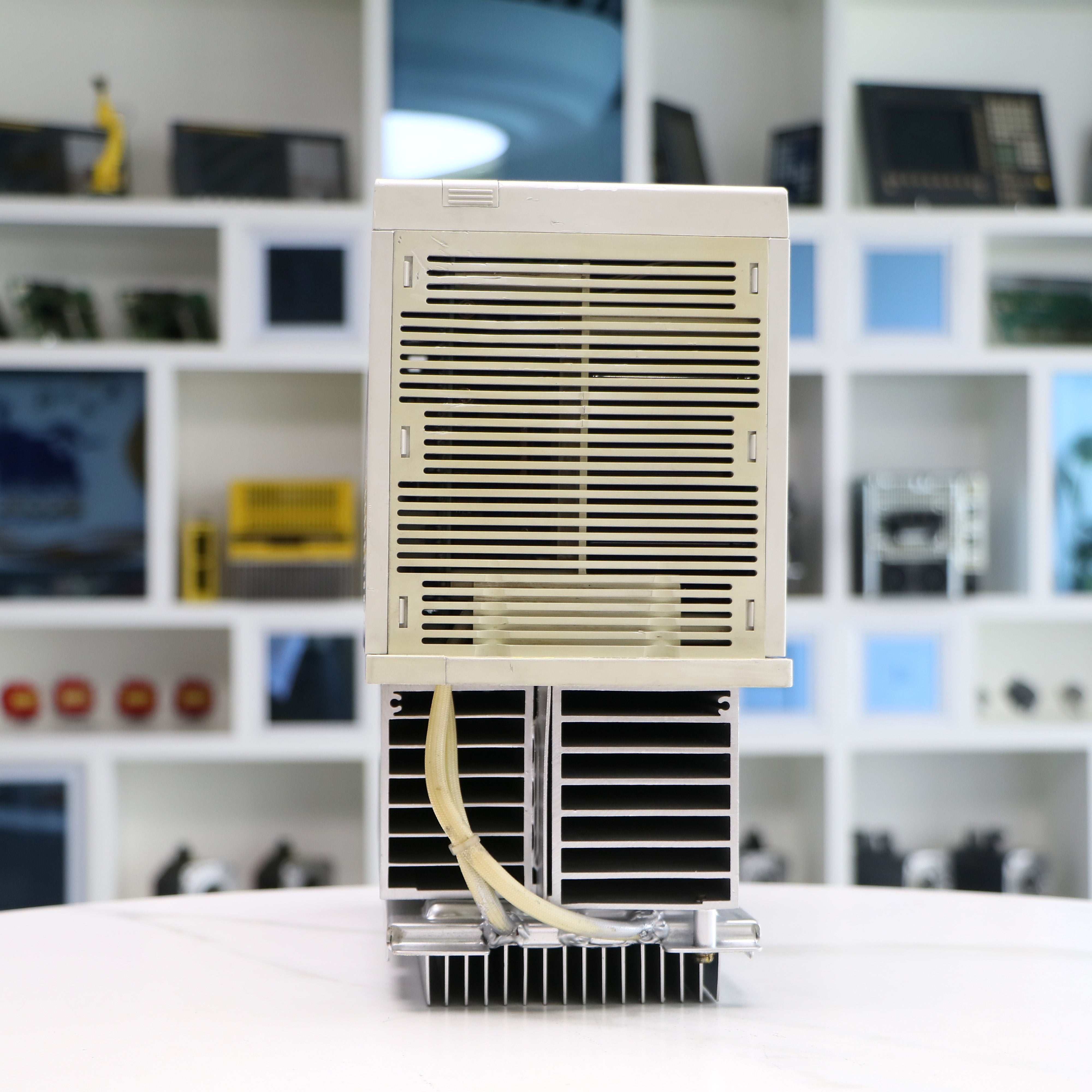

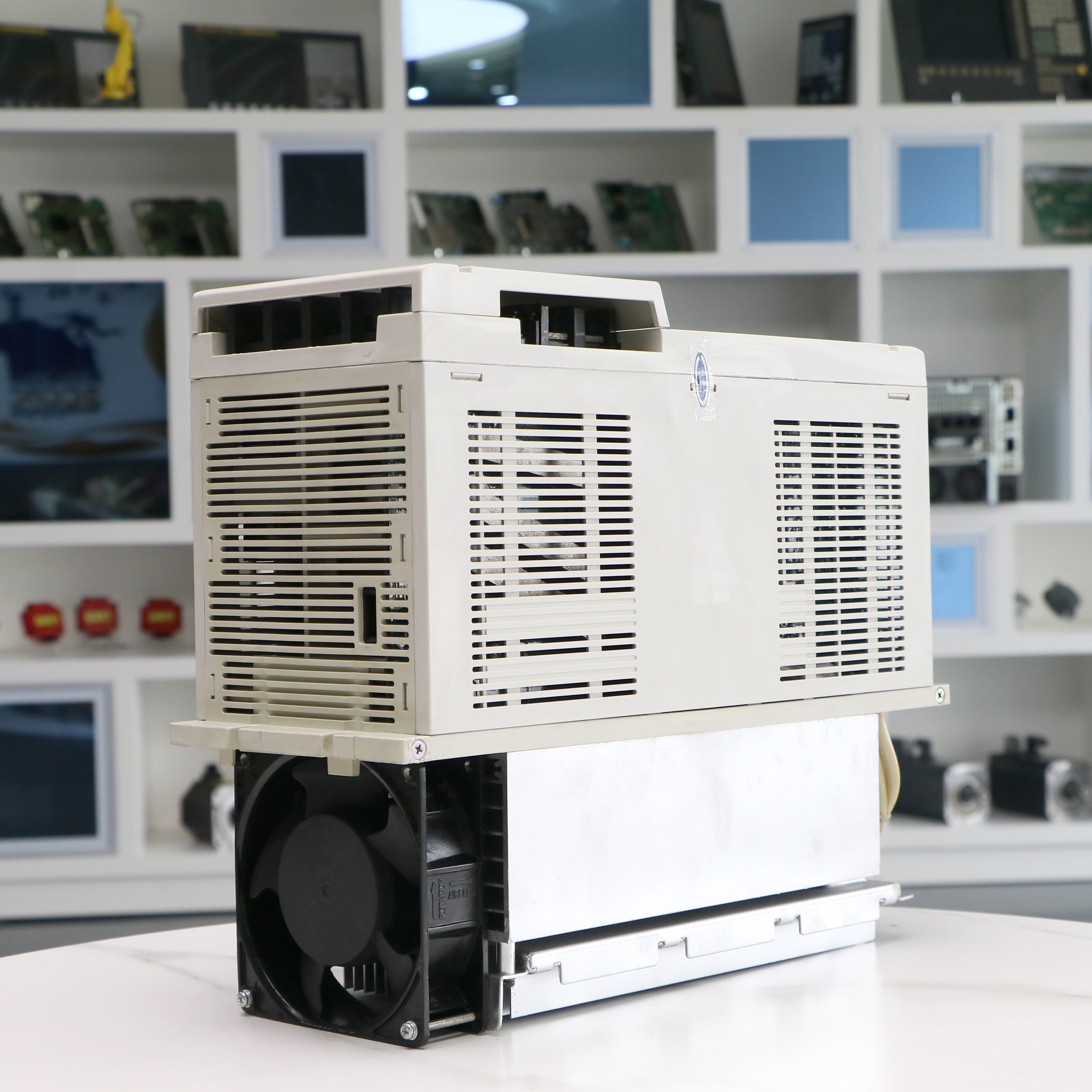

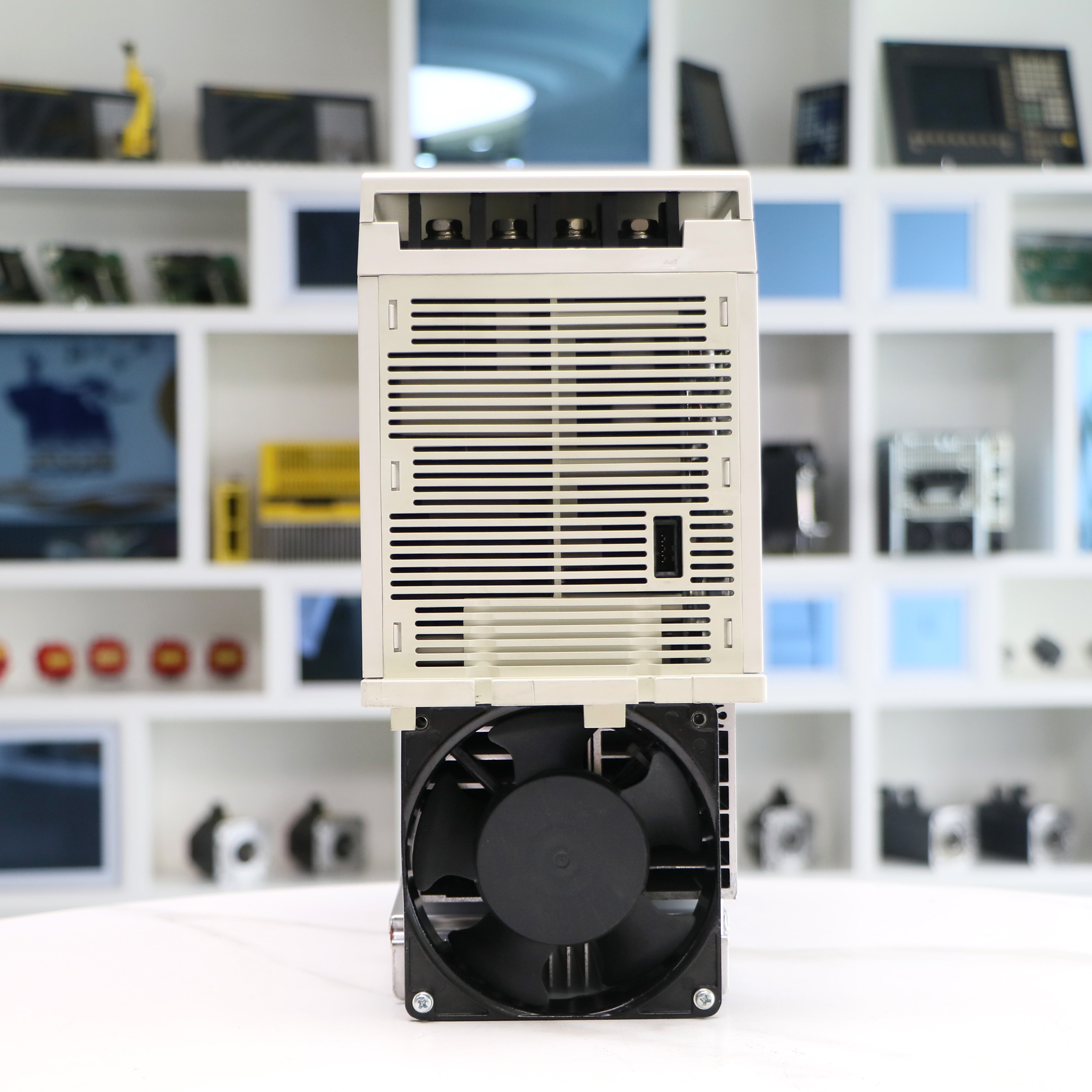

The MDS-B-CV-260 is in compliance with European Safety Standards and generates a meagre amount of heat. With the incorporation of IPM and due to the regeneration of the power supply in the servo drive, the heat excretion is reduced to a great extent. It has a fan mounted on the rear side for cooling purposes.

Additionally, this power supply unit is very lightweight and compact in design due to the standardized dimensions. Aside from that, the Mitsubishi MDS-B-CV-260 has a very smooth operation with minimum orientation times due to the utilization of the high-speed orientation method in this power supply unit.

The high-speed CPU and 100,000 pulse/rotation sub-micron detector enable faster and more precise interpolation, improving cutting performance and precision during position control.

Product Compatibility:

The Mitsubishi MDS-B-CV-260 power supply module is highly versatile and can integrate various components and systems. It is particularly effective with multiple drive units, such as the MDS-B-V14L, MDS-B-V24, and MDS-B-SP models.

Regarding servo motors, the MDS-B-CV-260 excels in controlling and powering these devices in tandem with the specified drive units. Its compatibility also extends to linear motor systems, efficiently supporting linear servomotors and the requisite linear scale feedback mechanisms.

The module's functionality is enhanced when paired with regenerative resistors, crucial for managing power dissipation during braking and similar processes. This ensures optimal performance and system stability.

For installation, AC reactors and contactors are essential, with each power supply unit requiring independent installation to maintain safety and functionality. These components are crucial for the correct setup and operation of the power supply module.

Precautions:

Several precautions are essential to ensure the safe and effective use of the Mitsubishi MDS-B-CV-260 power supply module. Avoid opening the front cover while powered to prevent electric shocks, and always wait 10 minutes after power-off before wiring. Install components on noncombustible materials and turn off the power immediately if faults occur to prevent fires. Maintain specified environmental conditions and use nonmagnetic tools due to the powerful magnets.

Regularly inspect and maintain the system, replacing parts like the electrolytic capacitor every five years to avoid failures. Ensure sufficient space for ventilation and cooling.

Frequently Asked Questions:

What makes the Mitsubishi MDS-B-CV-260 efficient?

The Mitsubishi MDS-B-CV-260 compact and lightweight design, low heat generation, and high-speed processing capabilities improve machine efficiency and reduce downtime.

What are the ideal environmental conditions for installing the MDS-B-CV-260?

Install the Mitsubishi MDS-B-CV-260 in a cabinet away from heat sources, maintain specified temperature and humidity levels, and ensure proper ventilation.

How often should the MDS-B-CV-260 be maintained?

A3: To maintain the Mitsubishi MDS-B-CV-260 power supply, perform regular maintenance, replace the electrolytic capacitor every five years, and periodically inspect for wear or damage.

Product Specifications Table

Attribute	Specifications
Series	MDS-B series
Module Type	MDS Power Supply
Input Current	95 A
Power	2x20kW
Frequency Range	50-60 Hz
Voltage Range	200 to 230V
Phase	3
Rated Capacity	26 kW
Rated Output Voltage	270-311V
Rated Output Current	115A
