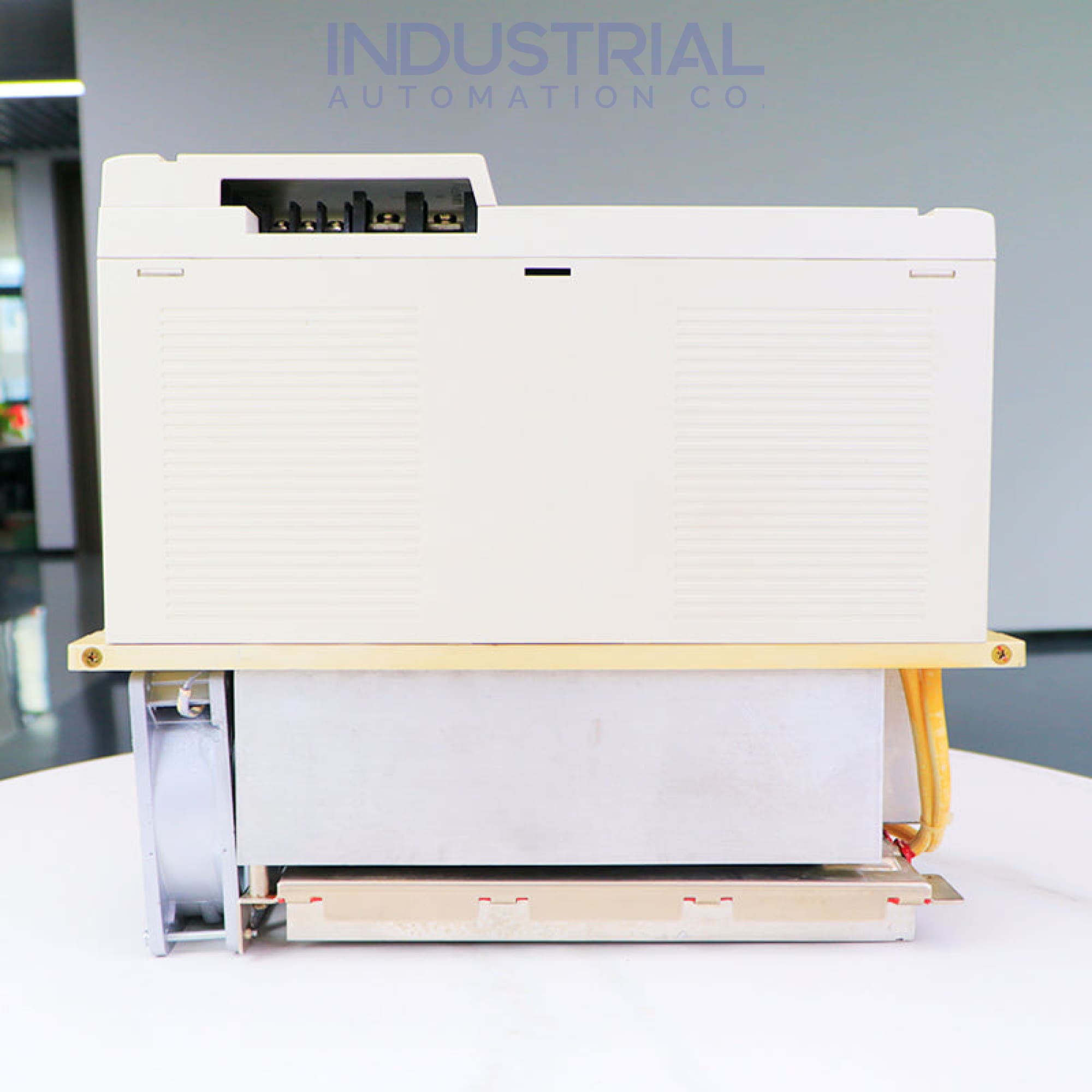

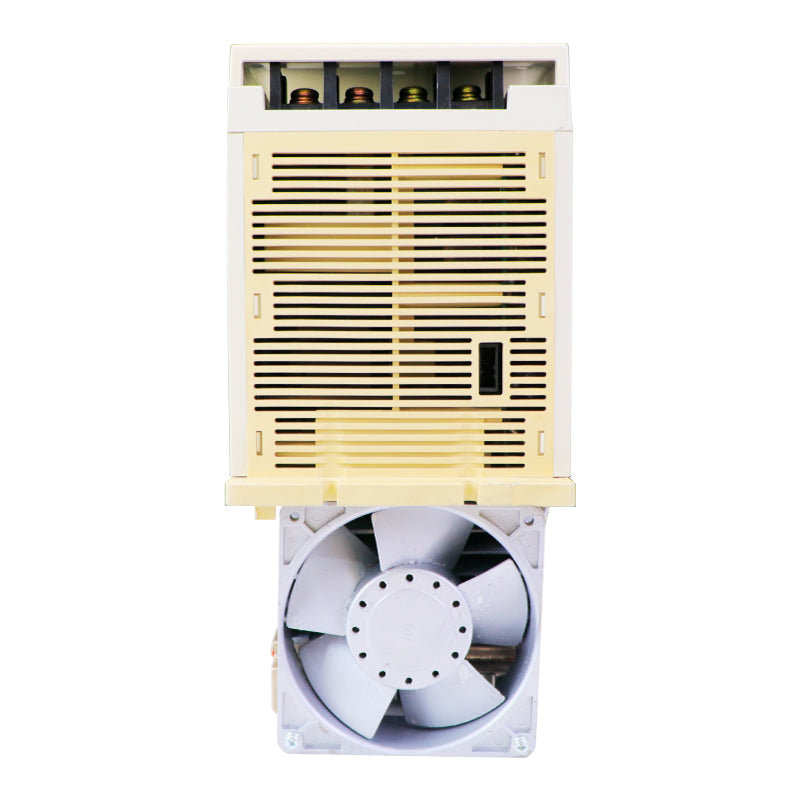

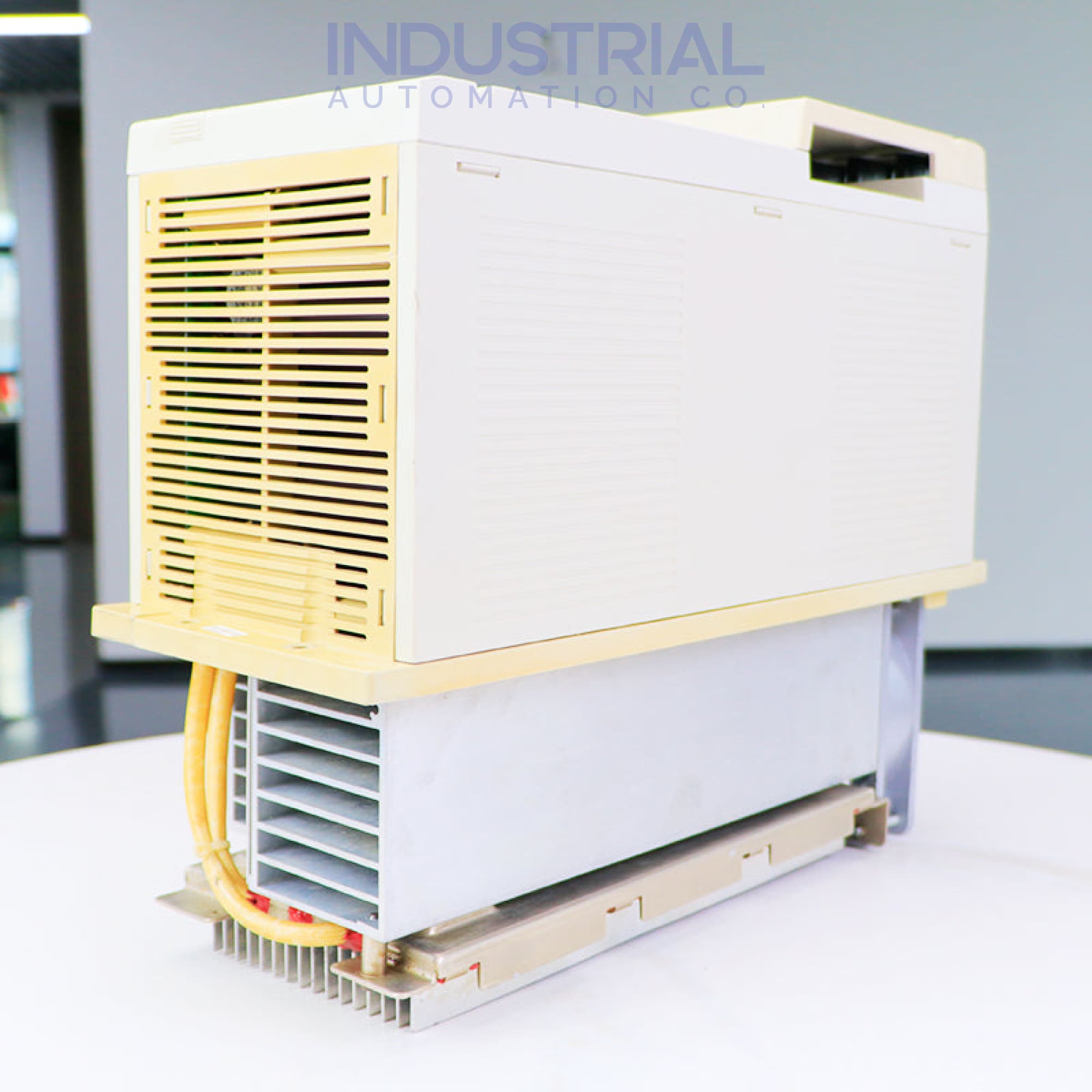

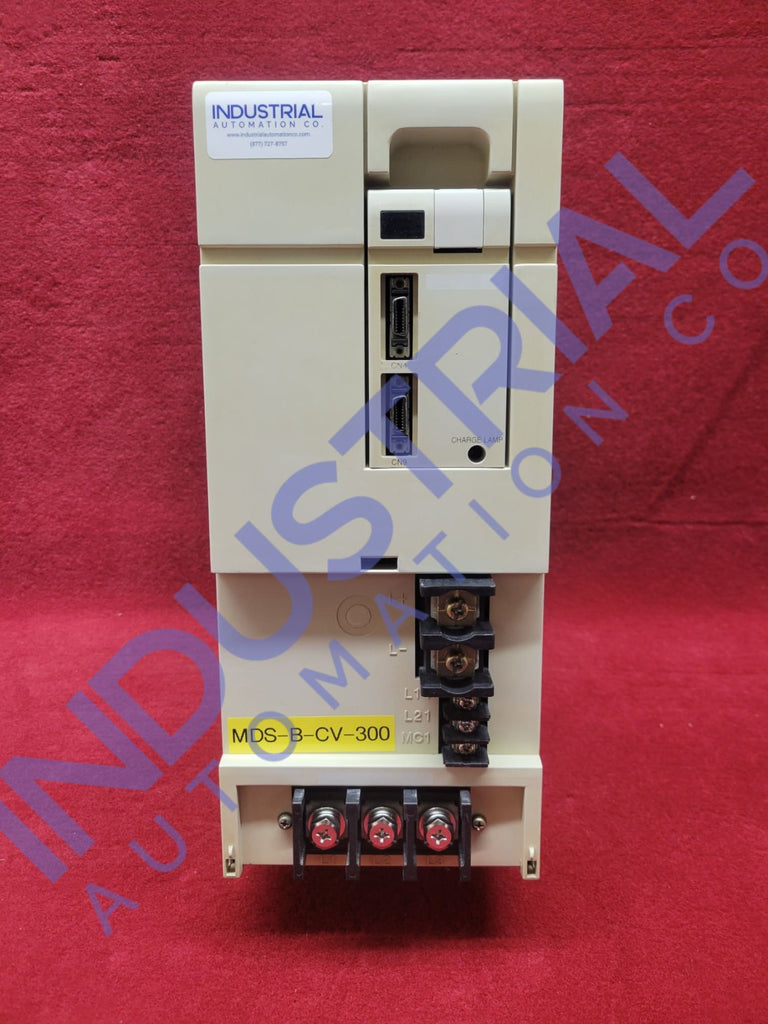

Mitsubishi MDS-B-CV-300

The Mitsubishi MDS-B-CV-300 power supply module is used for precise industrial applications. It is a member of the MDS-B series. Because of its unique engineering, this module can accommodate spindle and servo drive units, guaranteeing reliable operational output and adequate power management of 90% efficiency.

Technical Features:

The MDS-B-CV-300 delivers a reliable power output essential for high-performance servo and spindle drive operations. It is compatible with other MDS-B series modules, allowing excellent integration into existing systems. Designed with advanced power management technologies, the Mitsubishi MDS-B-CV-300 ensures minimal energy loss and optimal performance.

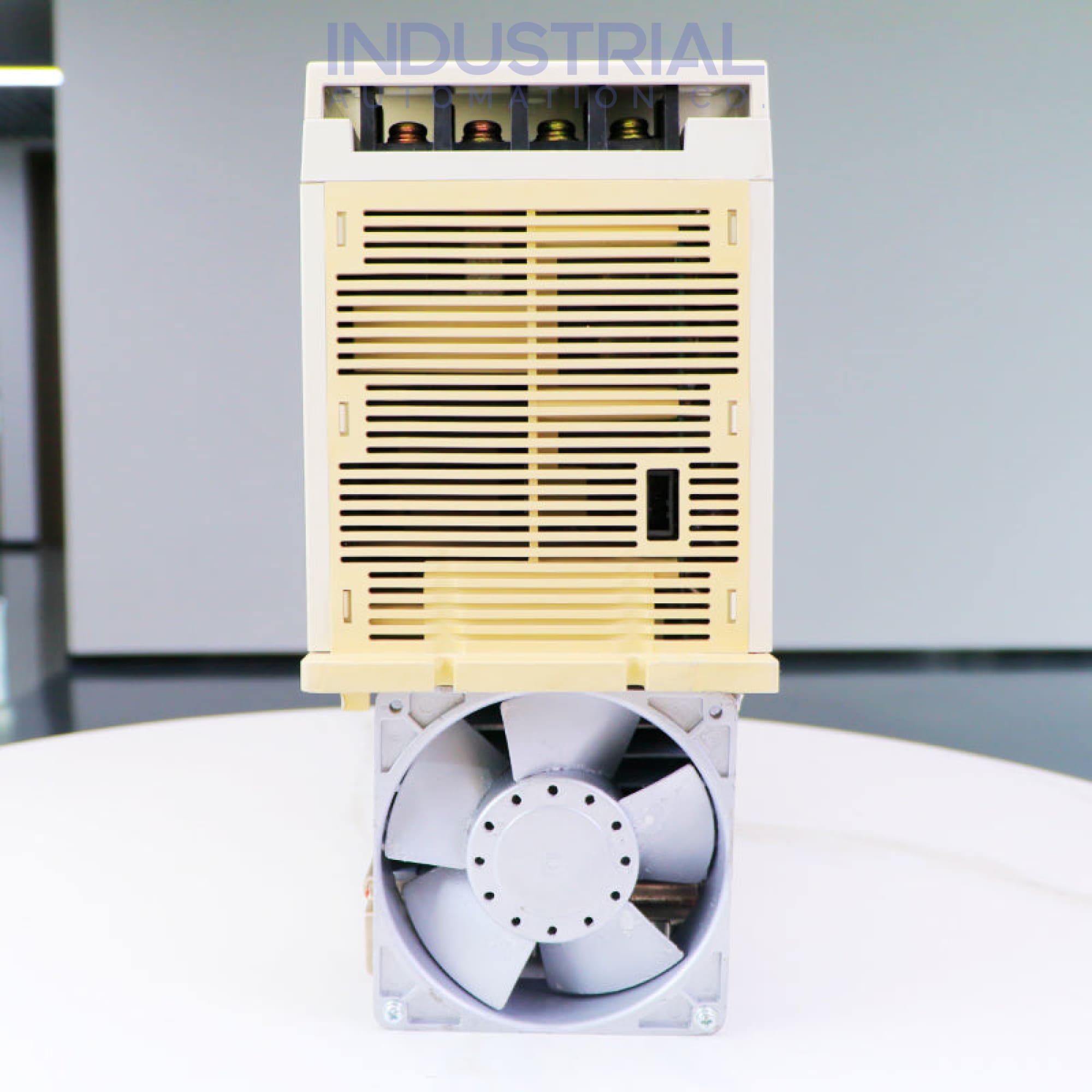

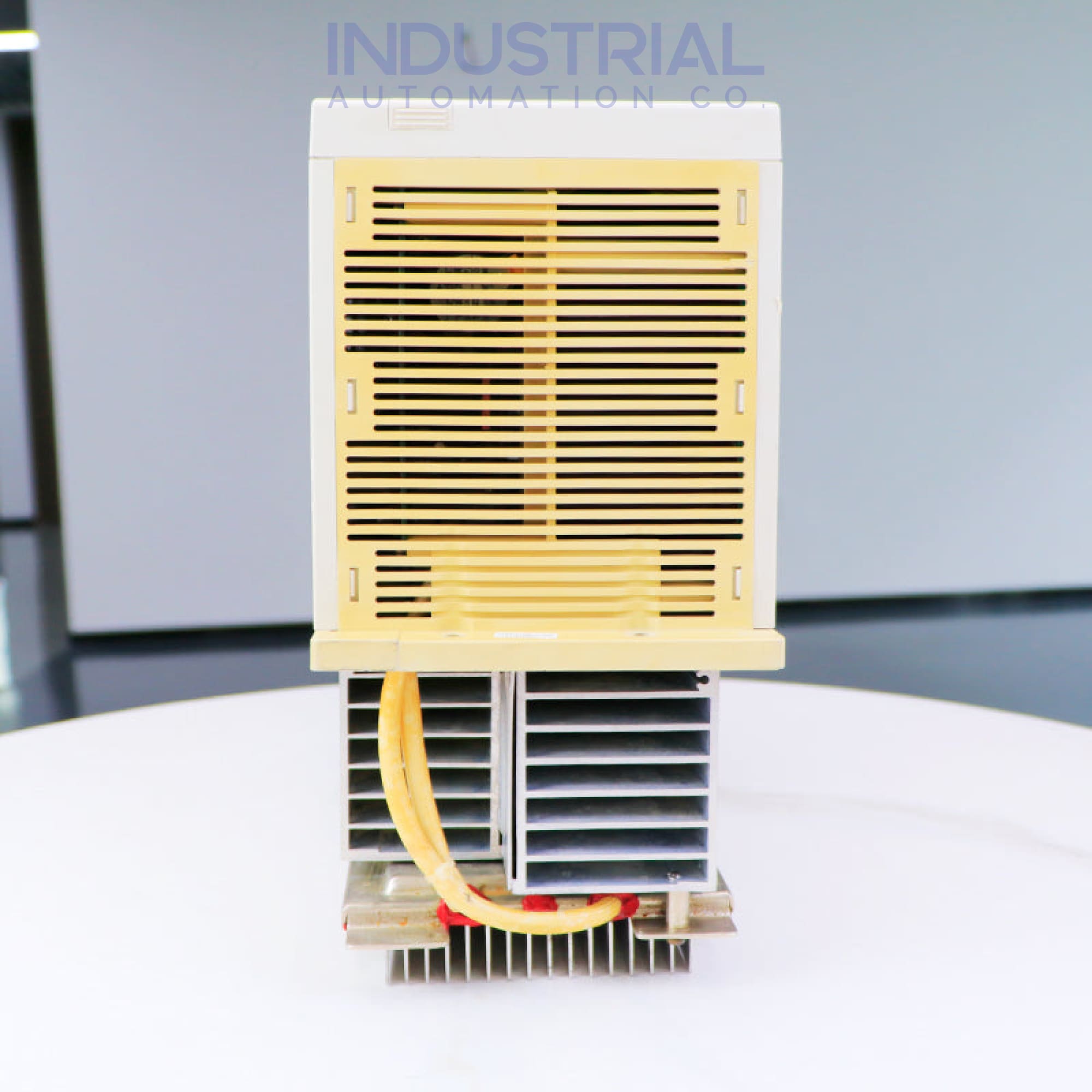

This module's sturdy construction guarantees longevity and consistent performance in challenging industrial settings. It guarantees the smooth operation of connected devices, minimizing downtime and boosting overall productivity. Although the MDS-B-CV-300 generates less heat, the cooling method available for this power supply module is forced air cooling.

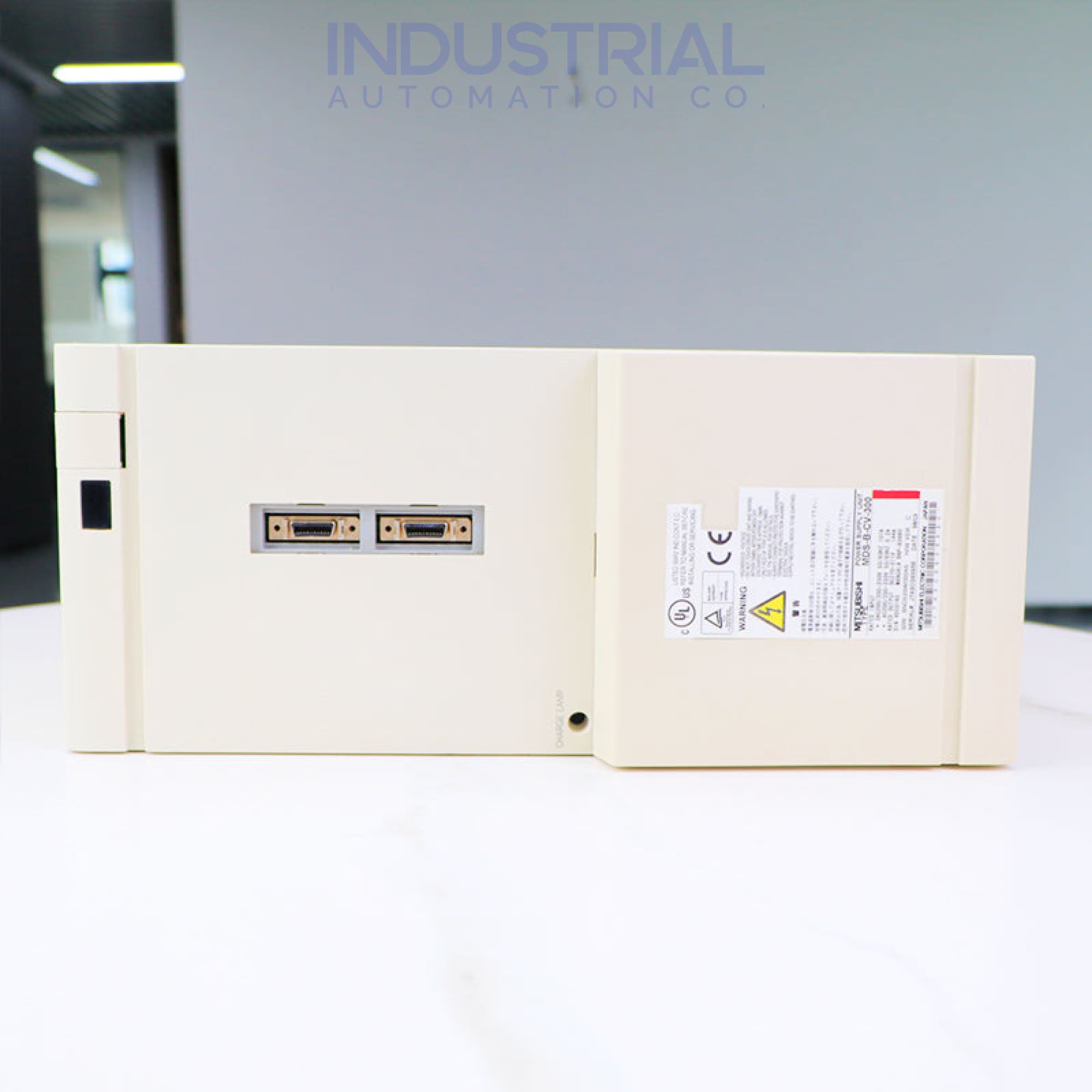

Advanced Pulse Width Modulation (PWM) control is a feature of the MDS-B-CV-300 that improves accuracy and dependability. It has several safety features to protect linked devices, such as undervoltage, overcurrent, overvoltage, and overheat prevention. The Mitsubishi MDS-B-CV-300 power supply module is by international safety standards such as IEC and UL. It also fulfills the EMC requirements for industrial environments.

Precautions:

When handling and installing the MDS-B-CV-300, it is important to follow proper precautions to ensure safety and optimal performance. Ensure all wiring is correctly connected according to the specifications provided. Wrong wiring can lead to malfunctions or damage to the power supply module. Do not apply excessive stress on the cables.

Avoid placing heavy objects on them or bending them sharply. Install surge protection devices to safeguard against voltage spikes that could damage the power supply module. When installing the MDS-B-CV-300 with AC reactors, it is necessary to ensure the installation is done correctly to avoid any safety hazards.

Install the module in an environment free from corrosive gases, combustible gases, oil mist, and dust. Maintain an ambient temperature between 0°C to 55°C with no freezing and a humidity level of 90% or less without condensation. The storage temperature for this power supply module is -20 to 70 degrees Celsius.

Compatibility:

The MDS-B-CV-300 power supply module is made to work with a variety of Mitsubishi servo and spindle drive units, which increases its adaptability in industrial settings. The MDS-B-V14L, MDS-B-V24, and MDS-B-V1 series are compatible servo drive units; the MDS-B-SP series is supported by spindle drive units. Moreover, this power supply module works with Mitsubishi's linear servo systems, necessitating high-speed and precise machining capabilities.

The MDS-B-CV-300 can be easily integrated into preexisting systems, providing dependable power to guarantee the smooth operation of all connected devices. Its design allows for multiple configurations, giving flexibility in installation to meet particular industrial requirements.

Frequently Asked Questions:

How vibration-resistant is the Mitsubishi MDS-B-CV-300 power supply module?

The Mitsubishi MDS-B-CV-300 can withstand about 4.9 m/s2 of vibrations.

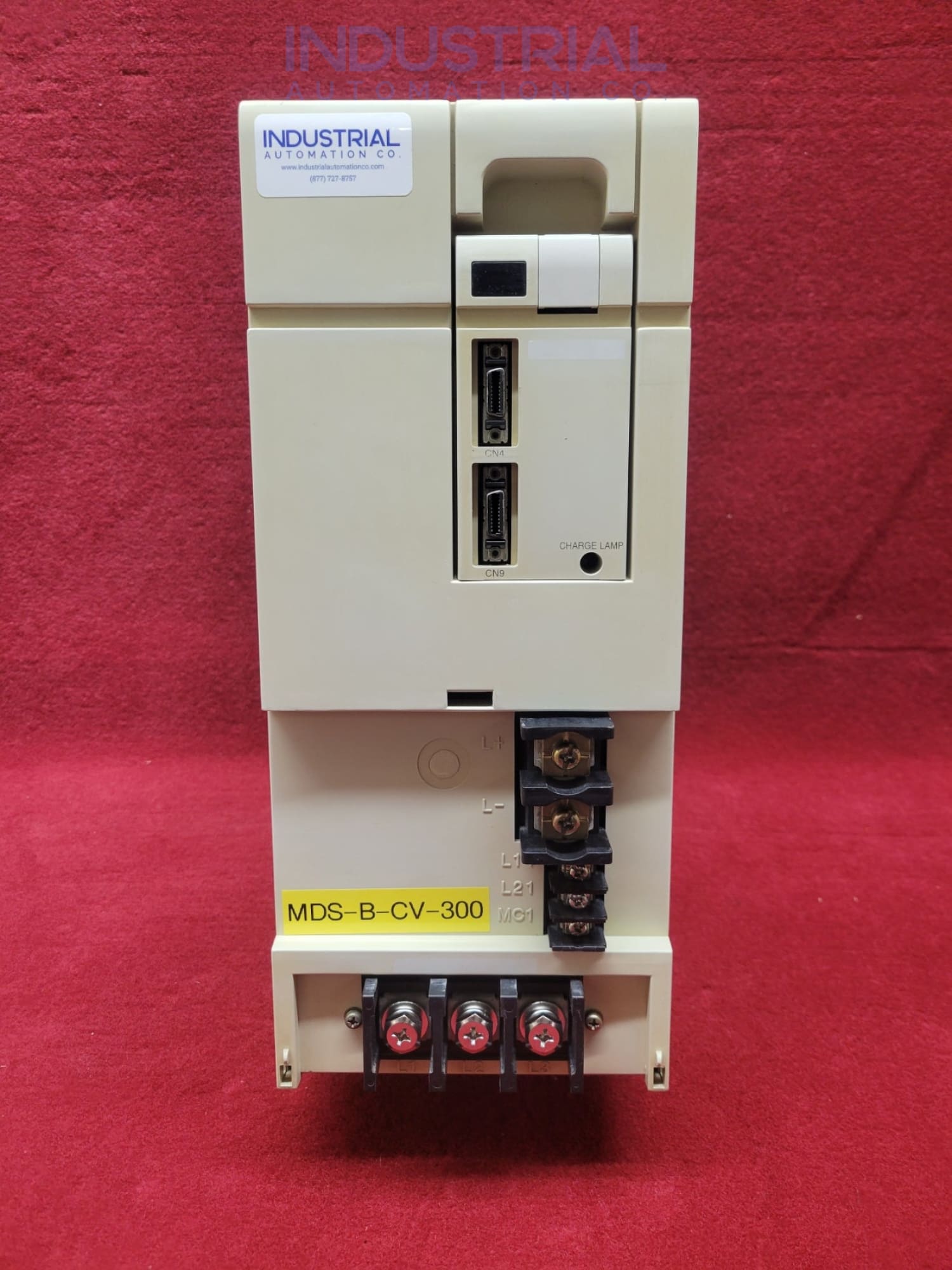

How is the smooth operation of Mitsubishi MDS-B-CV-300 indicated?

The LEDs on the module indicate if the MDS-B-CV-300 is operational or has any fault.

What are the input and output voltages of the MDS-B-CV-300 power supply module?

A3: The MDS-B-CV-300 operates in a three-phase configuration with an input voltage range of 200-230V AC. It provides a stable output voltage of 300V DC, ensuring consistent power delivery for connected devices.

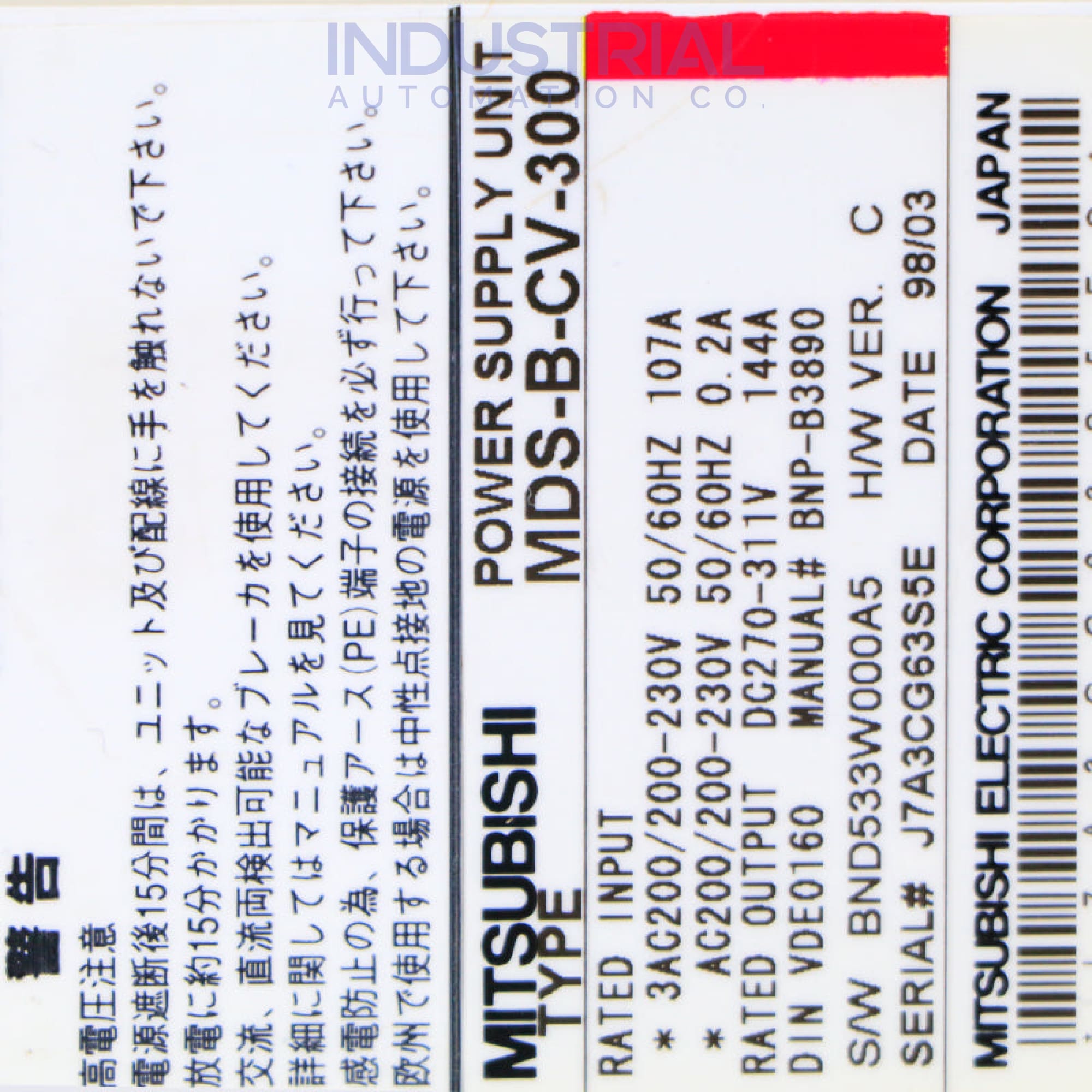

Product Specifications Table

Attribute	Specifications
Series	MDS-B series
Module Type	MDS Power Supply
Cooling Method	Forced air cooling
Input Current	107 A
Frequency Range	50-60 Hz
Voltage Range	200 to 230V
Phase	3
Rated Capacity	30 kW
Rated Output Voltage	270-311V
Rated Output Current	144A
