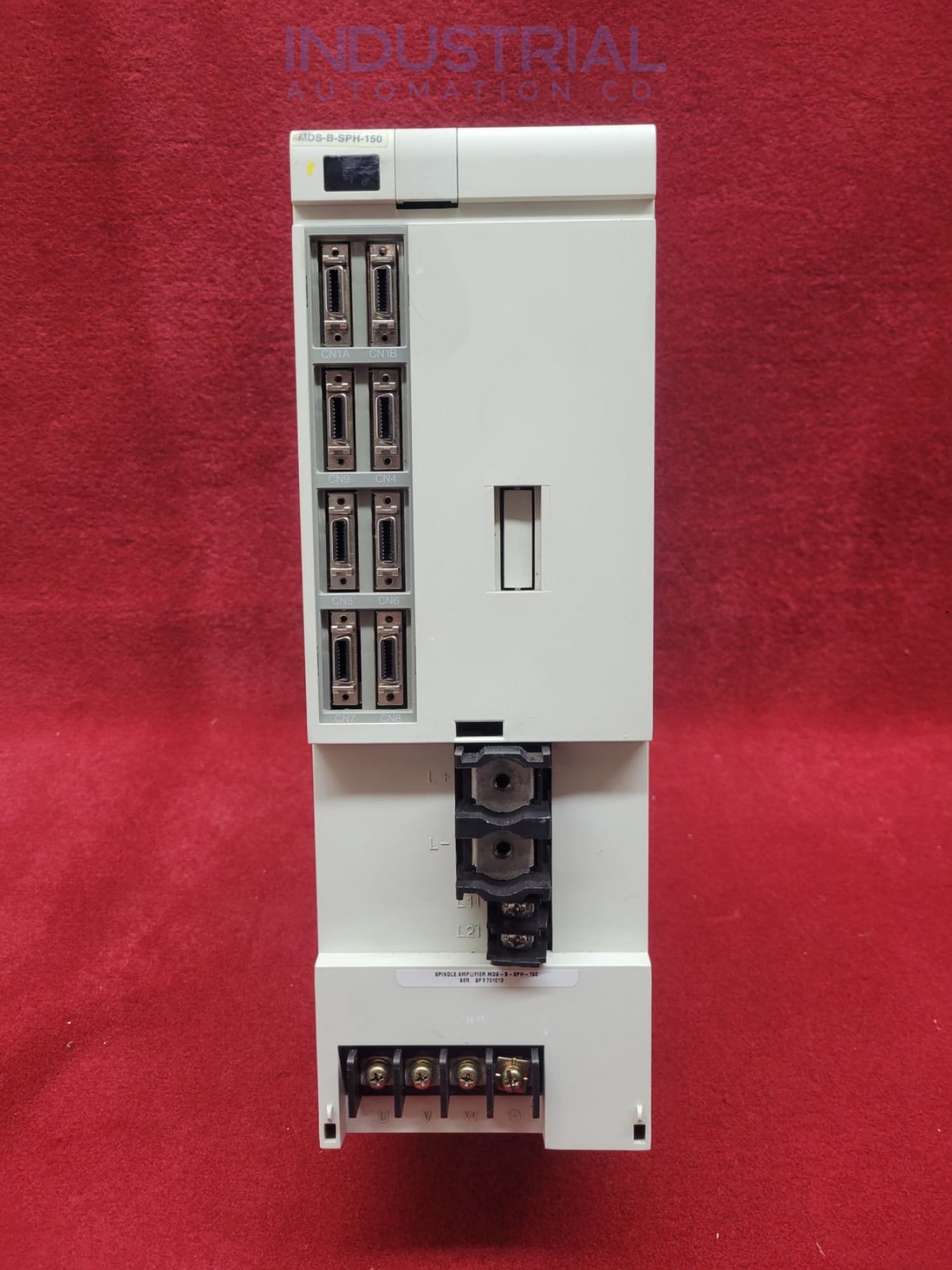

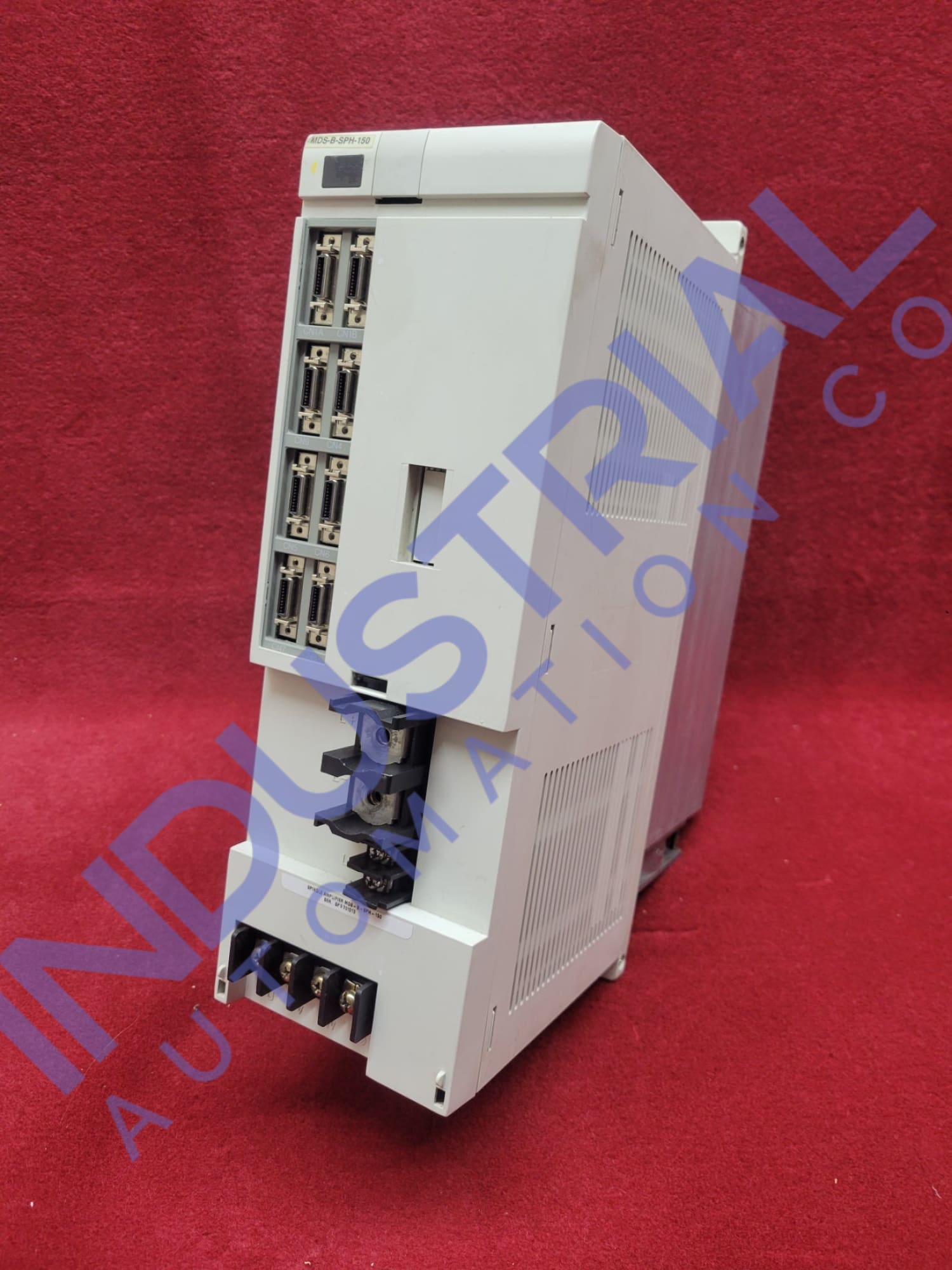

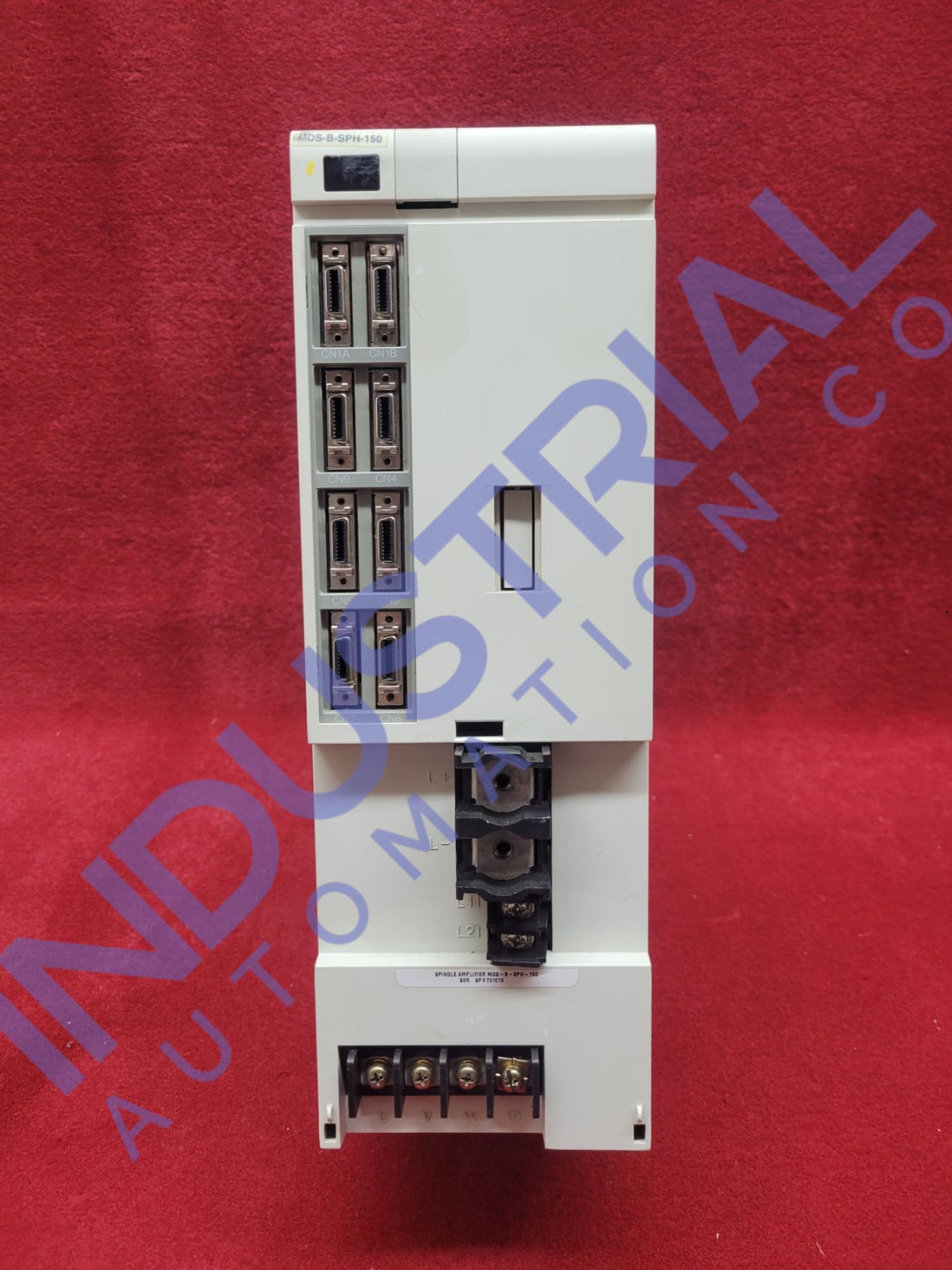

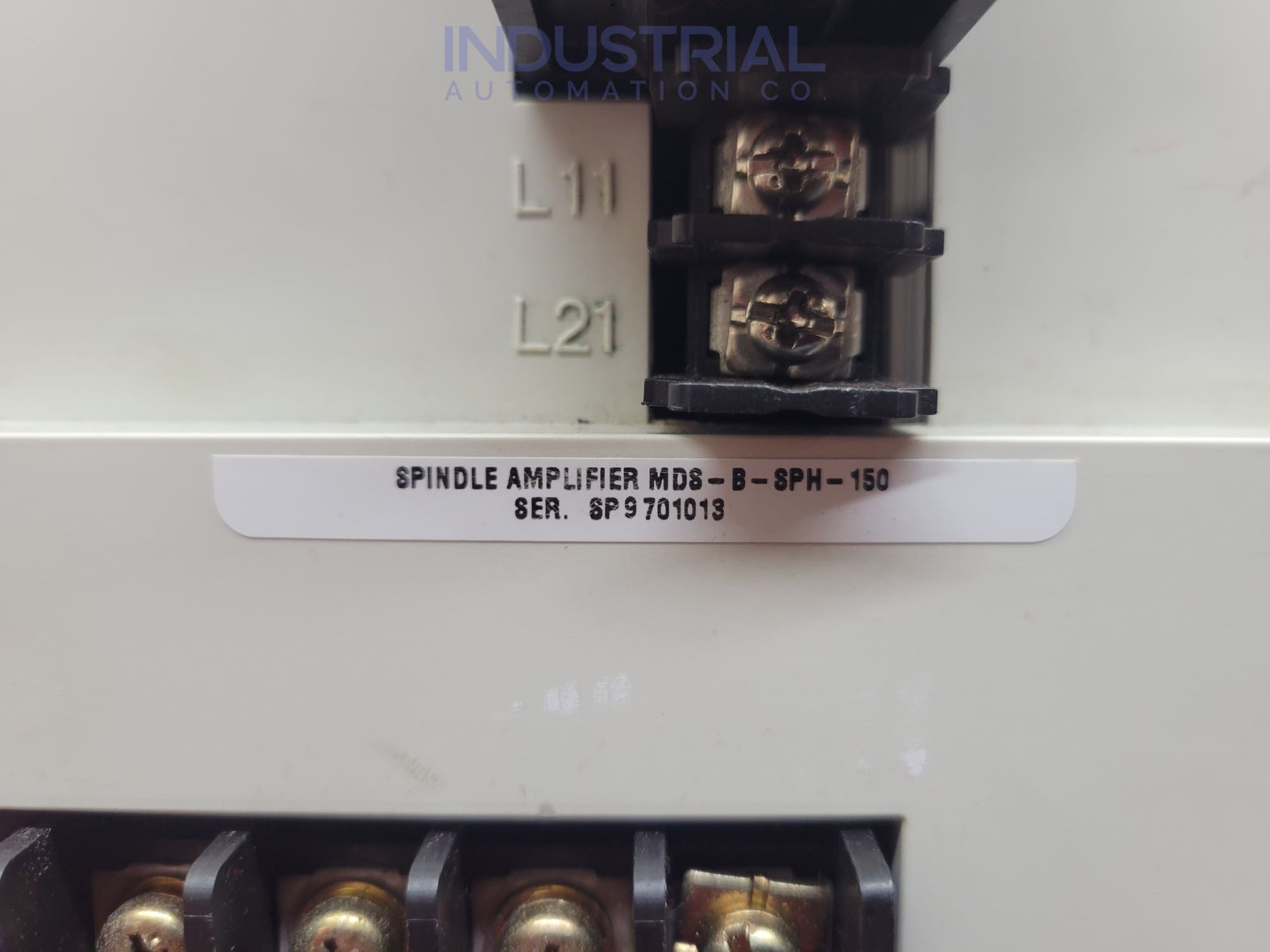

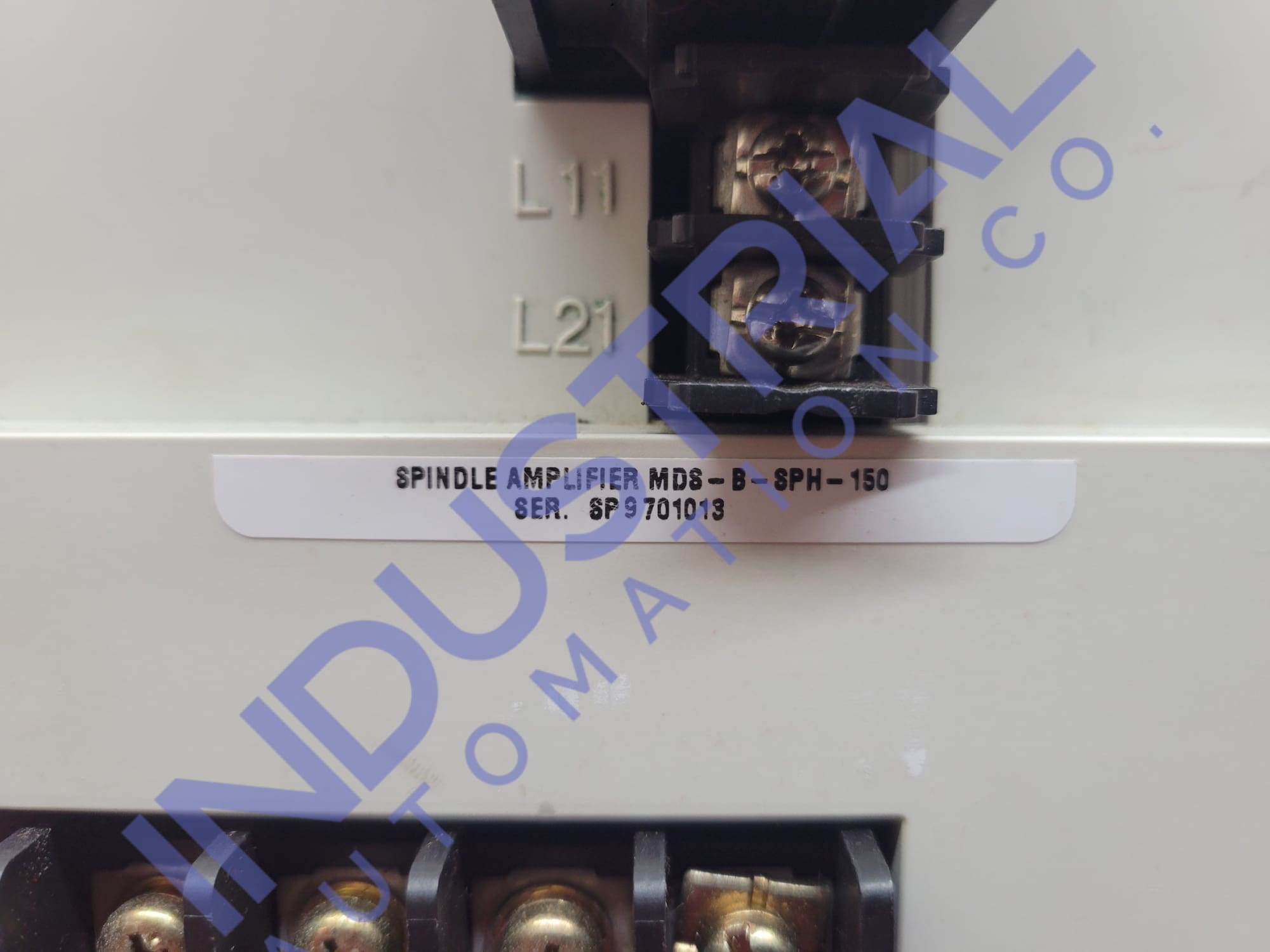

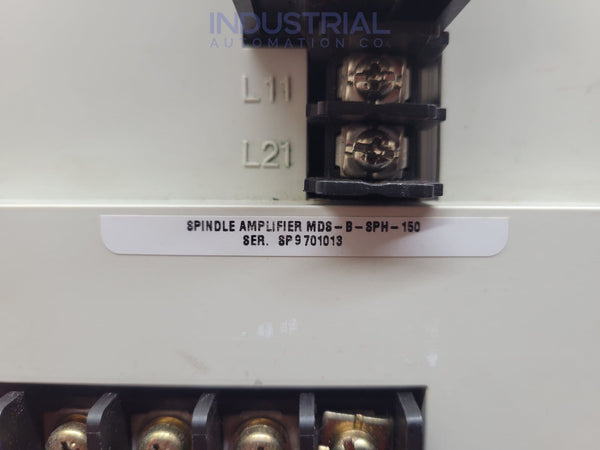

The Mitsubishi MDS-B-SPH-150 is a high-performance spindle drive developed for sophisticated CNC applications. This spindle drive unit allows for high-speed operations, assuring precision and efficiency in machining processes. It is a member of the MDS series and is noted for its dependability and sophisticated features appropriate for various industrial applications.
The MDS-B-SPH-150 spindle drive operates at 15 kW power with an input voltage of 200-230 VAC and a frequency of 50/60 Hz. It enables accurate control of machine acceleration, speed, and torque. It features MELDAS AC spindle control, enhancing its high-speed CNC operation performance. The unit is engineered to provide high torque and speed, making it suitable for demanding machining tasks. It also includes advanced diagnostic features for maintenance and troubleshooting, ensuring minimal downtime and efficient operation.
The Mitsubishi MDS-B-SPH-150 spindle drive is highly compatible with various Mitsubishi CNC controllers, particularly the MELDAS series. This includes the MELDAS 60, 60S, 600, and 600S series, all of which support high-speed processing and advanced motion control features that complement the spindle drives capabilities. Additionally, the MDS-B-SPH-150 works seamlessly with Mitsubishi servo motors such as the HF-KP, HF-SP, HF-JP, and HC series. These motors are designed to meet high-speed and high-torque requirements, making them ideal for demanding machining applications.
Moreover, the spindle drive can be integrated into various CNC machine tools, including milling machines, lathes, and drilling machines. This versatility makes it suitable for use in industries such as aerospace, automotive, and precision manufacturing, where high-speed capabilities and precise control are essential. The drive is also compatible with Mitsubishi power supply units from the MDS-B series, such as the MDS-B-CV-370, which provide the necessary voltage and current to ensure efficient operation.
Regarding communication and control, the MDS-B-SPH-150 can interface with Mitsubishis communication and interface modules. These modules facilitate reliable data exchange between the spindle drive and CNC controller, ensuring perfect integration with other system components. Additionally, the spindle drive supports various peripherals, including cooling systems, braking resistors, and feedback devices, which are crucial for maintaining optimal performance and extending the lifespan of the drive.
Mounting the MDS-B-SPH-150 requires careful attention to ensure proper installation and operation. The drive should be installed in a well-ventilated area to prevent overheating. It should be securely mounted on non-combustible material to reduce the fire risk. Proper grounding and alignment are crucial to avoid electrical issues and ensure efficient performance. The unit has mounting brackets and detailed installation instructions to facilitate correct setup. Additionally, regular inspections and maintenance are recommended to maintain optimal performance and longevity of the spindle drive. The MDS-B-SPH-300 operates best between the temperatures of 0 to 55 degrees Celsius.
Regular maintenance for the MDS-B-SPH-150 involves testing and cleaning the cooling system to prevent overheating, examining electrical connections for wear and tear, and updating all firmware and software.
Yes, the MDS-B-SPH-150 can be integrated with existing CNC systems, particularly those utilizing Mitsubishi's MELDAS series controllers. The spindle drive is designed to work seamlessly with these controllers, ensuring smooth communication and control for enhanced operational efficiency.
AThe MDS-B-SPH-150 improves machining performance by enabling high-speed, high-torque spindle control, which assures precision and efficiency during machining processes.
Attribute | Specifications | |
---|---|---|
Series | MDS-B series | |
Module Type | MDS Spindle Drive | |
Current | 76 AMP | |
Power | 15 kW | |
Frequency Range | 50-60 Hz | |
Input Voltage Range | 200-230 VAC | |
Phase | 3 | |
DC Voltage | 270-311 V | |
Cooling Method | Air cooled | |
Control Method | MEDLAS AC Spindle control |
