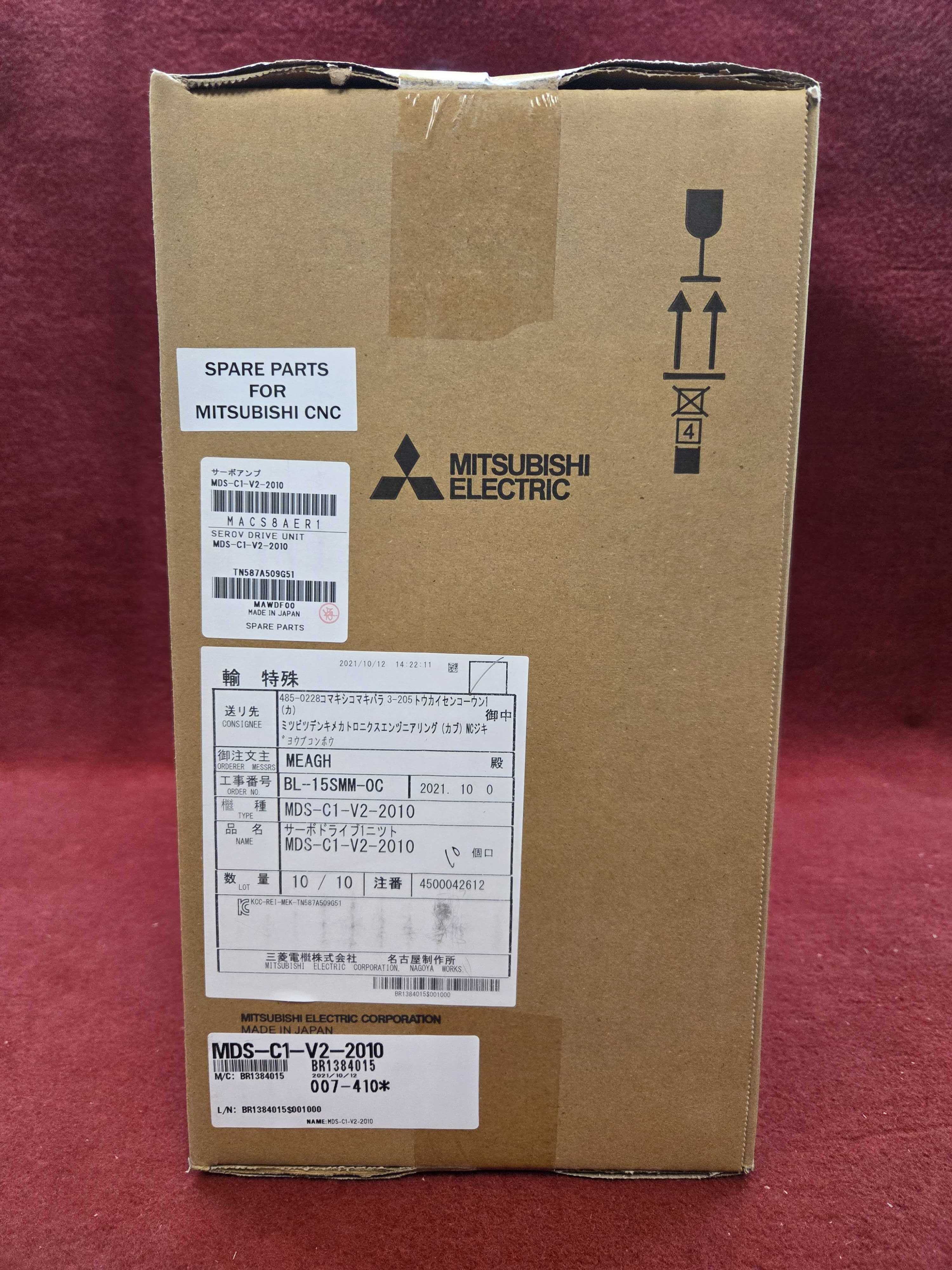

Mitsubishi MDS-C1-V2-2010

Mitsubishi Mds-C1-V2-2010
Mitsubishi Mds-C1-V2-2010
Mitsubishi Mds-C1-V2-2010

Mitsubishi MDS-C1-V2-2010

Regular price
Sale price

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.

Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

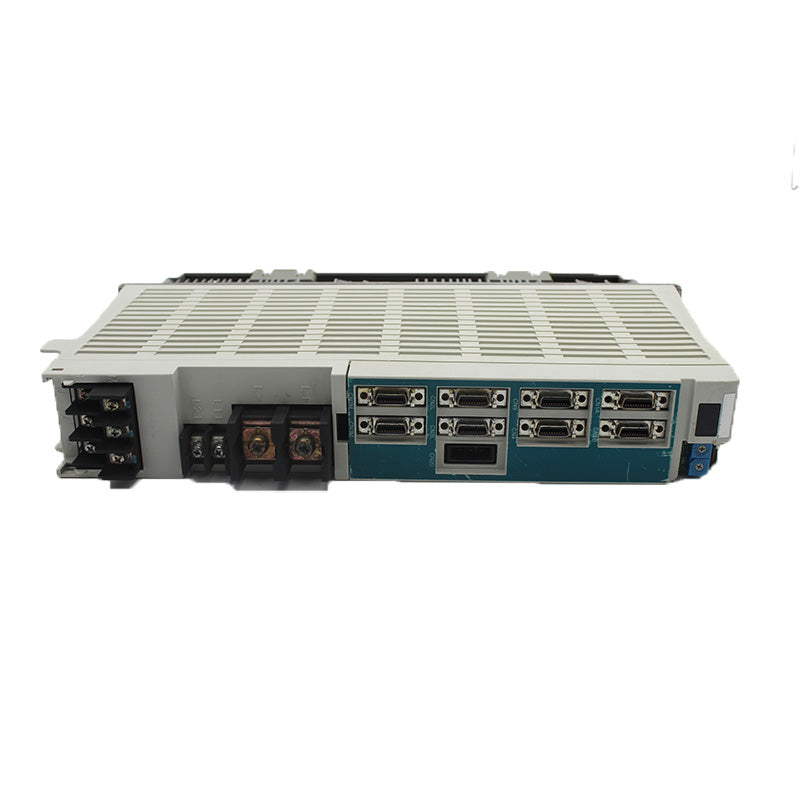

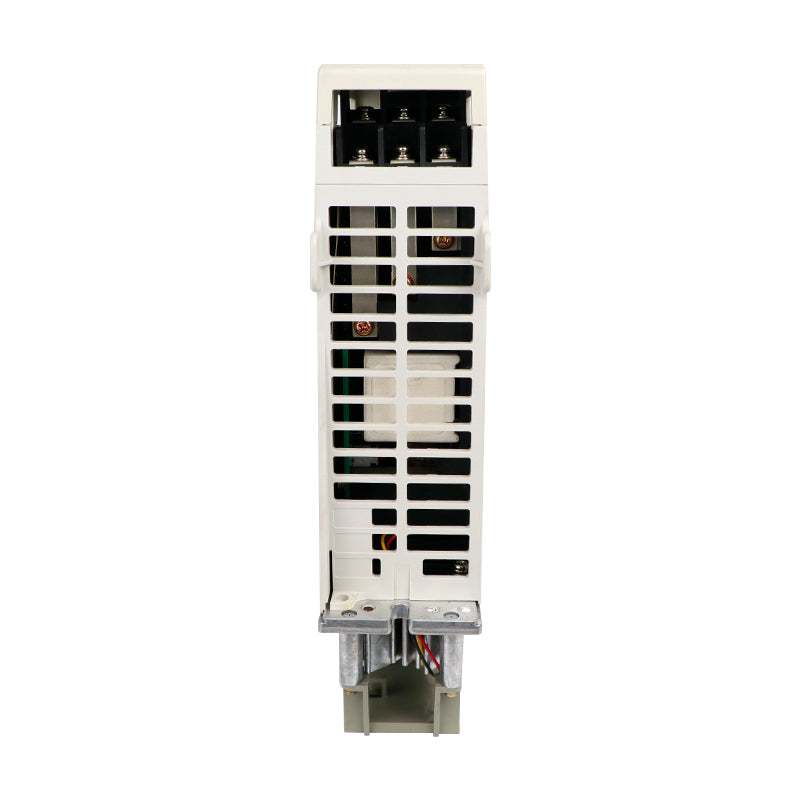

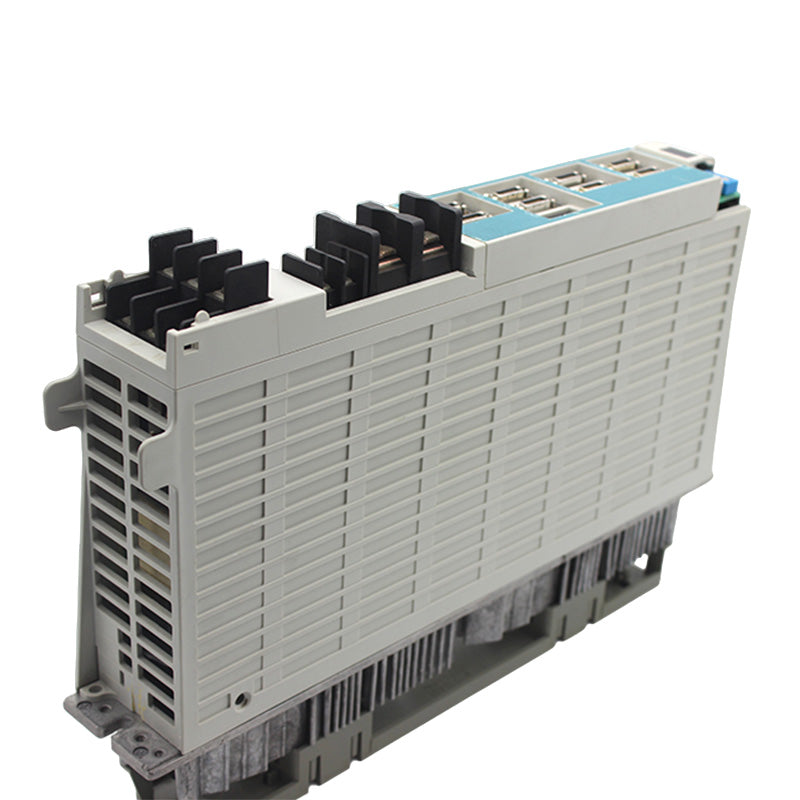

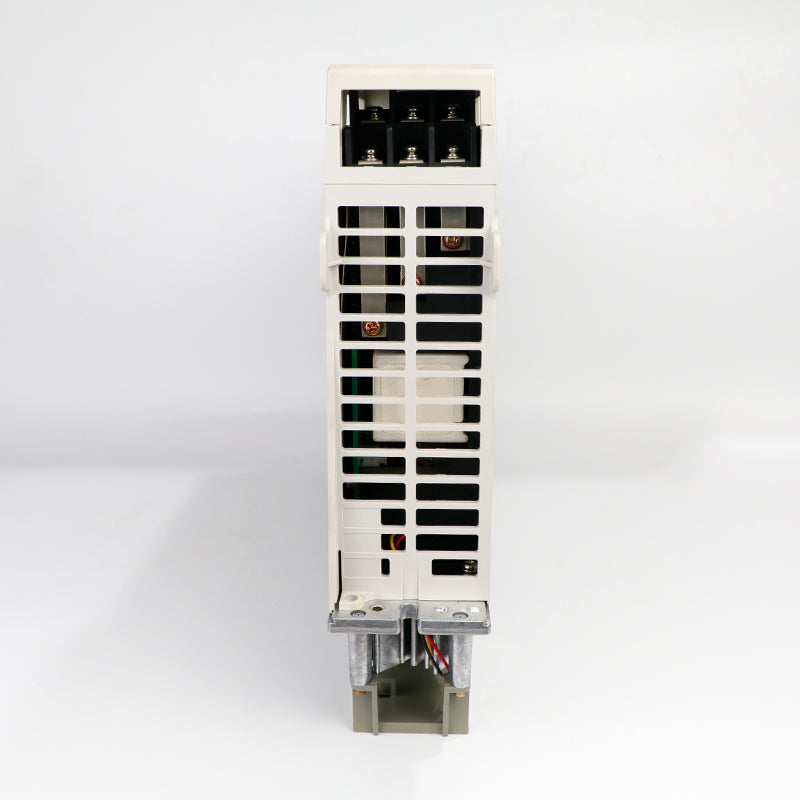

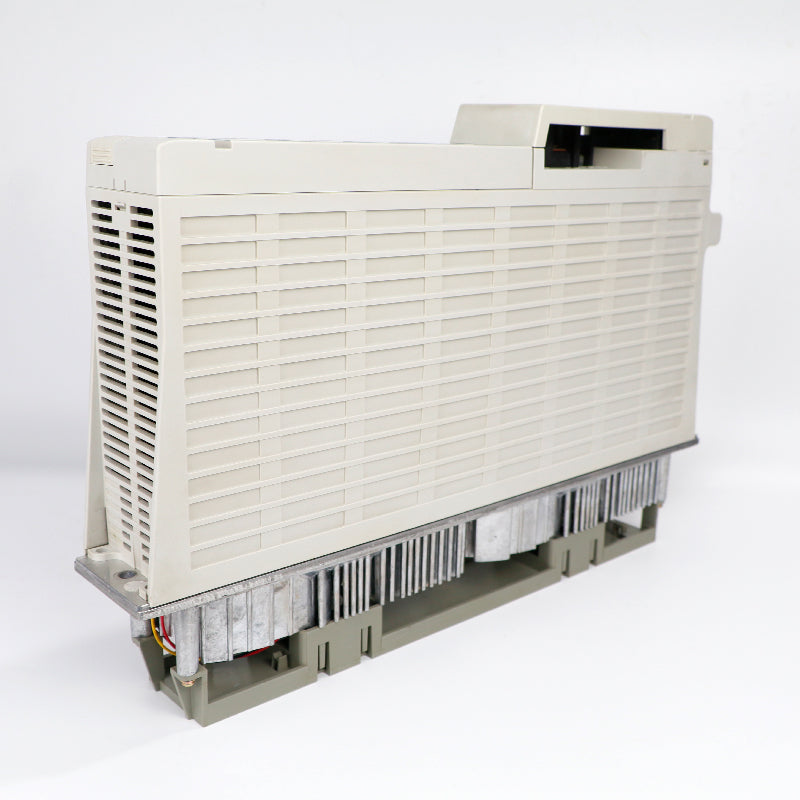

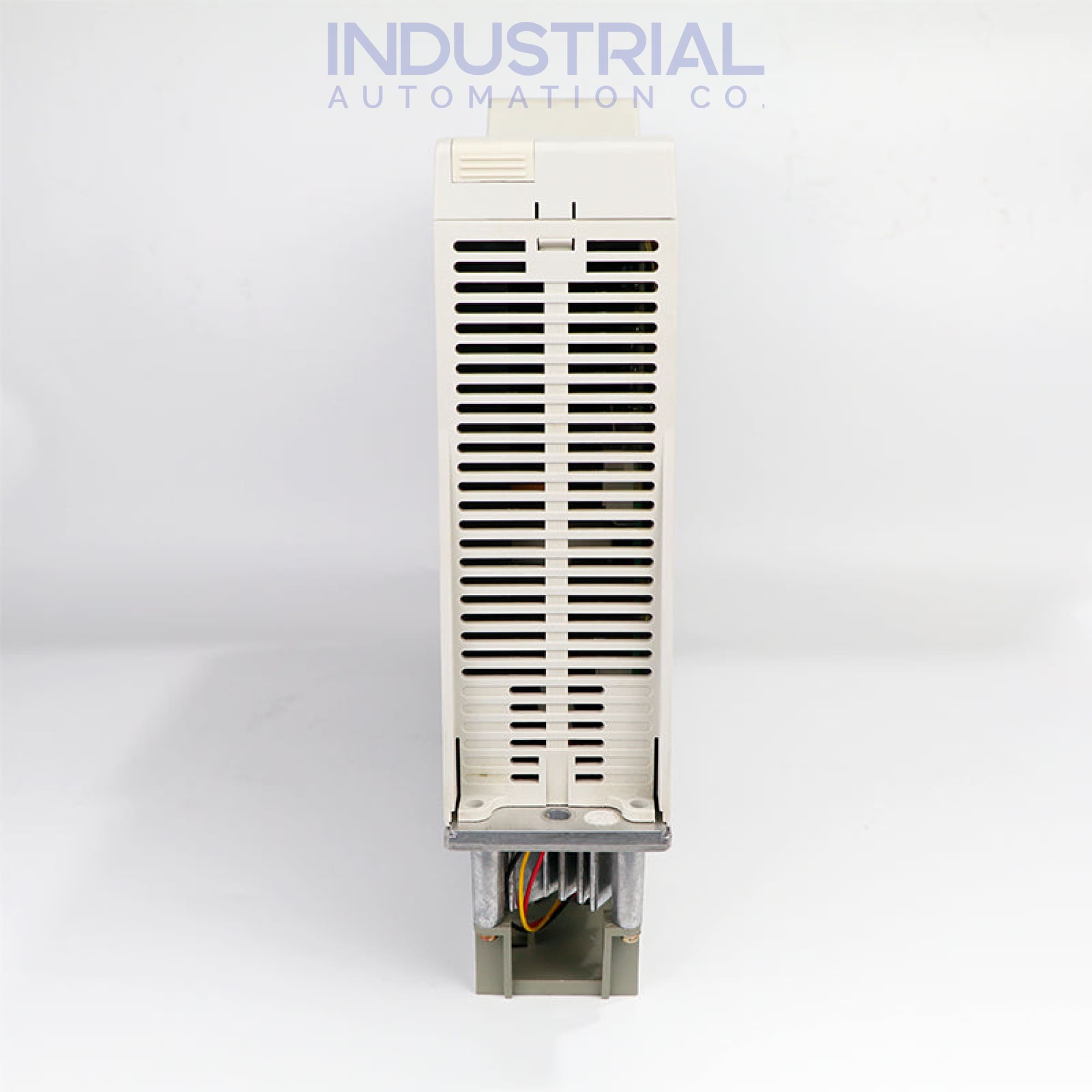

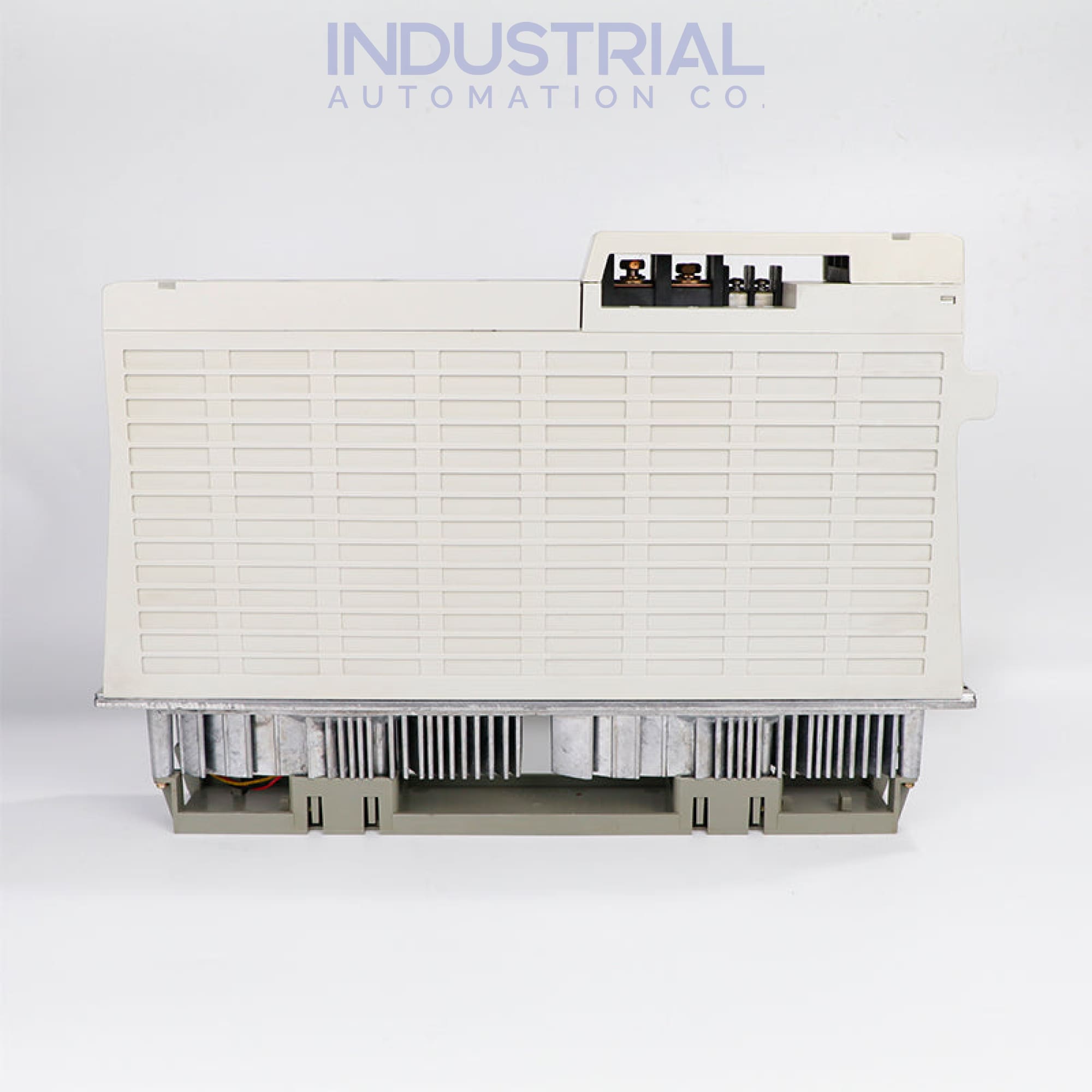

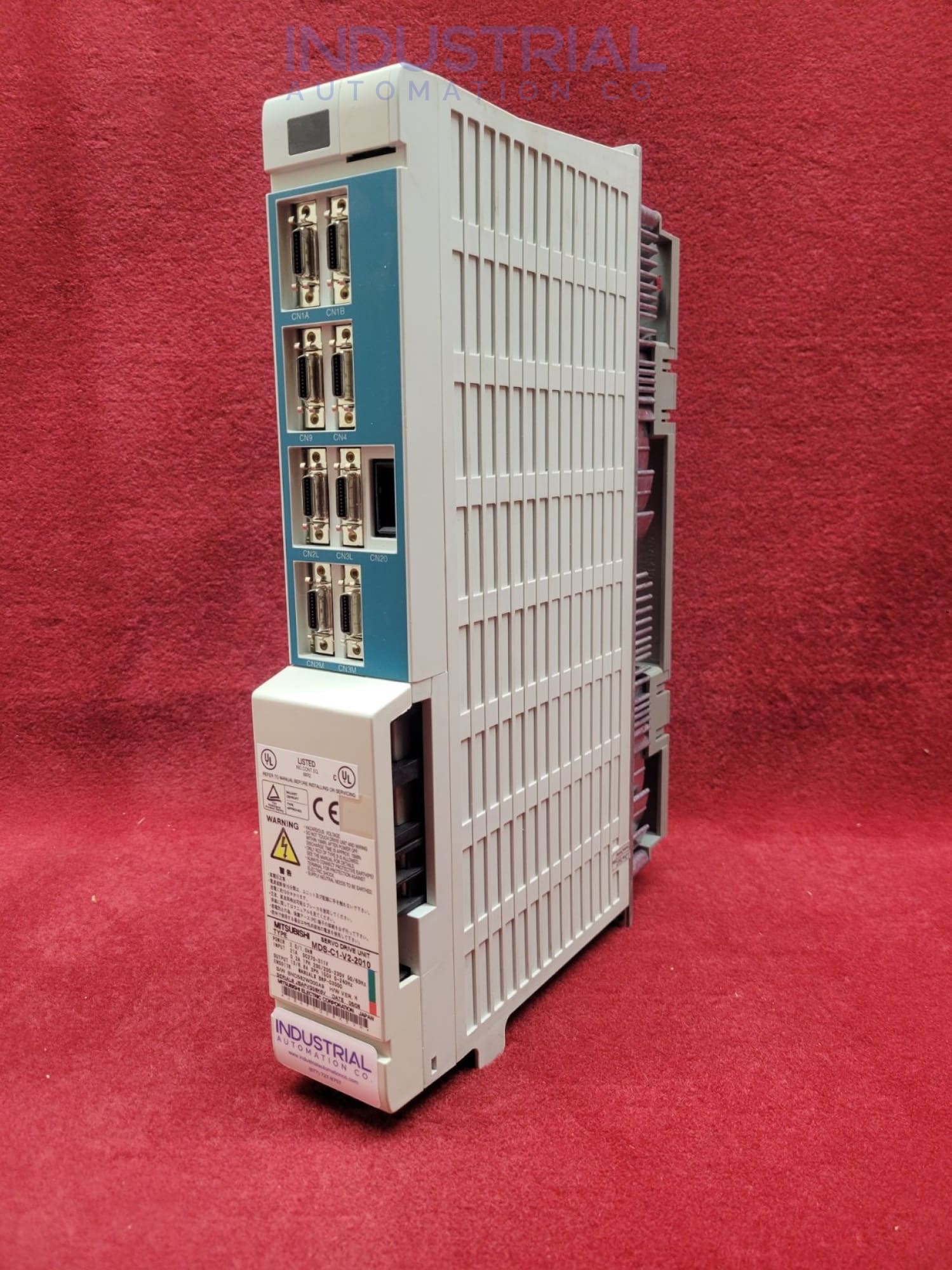

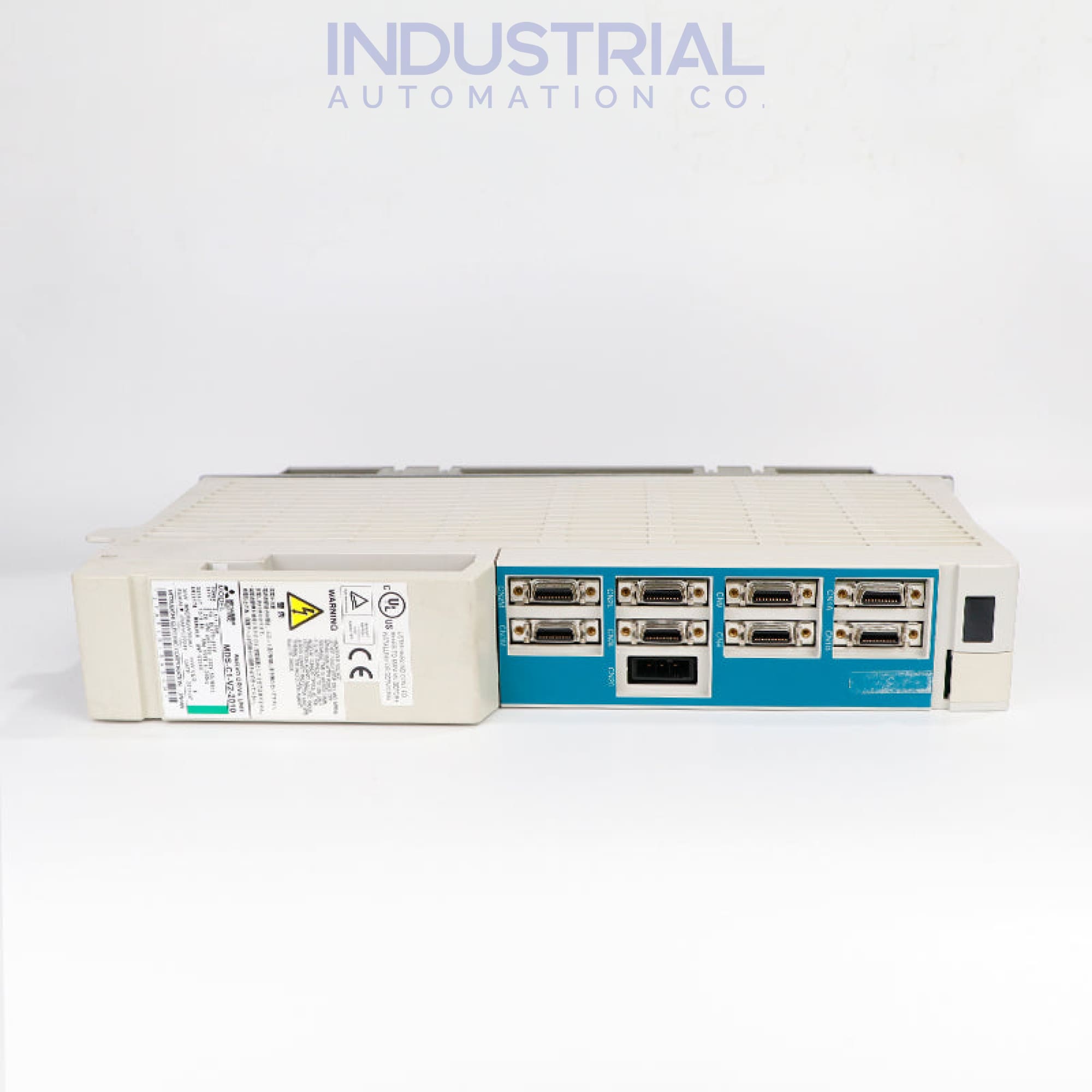

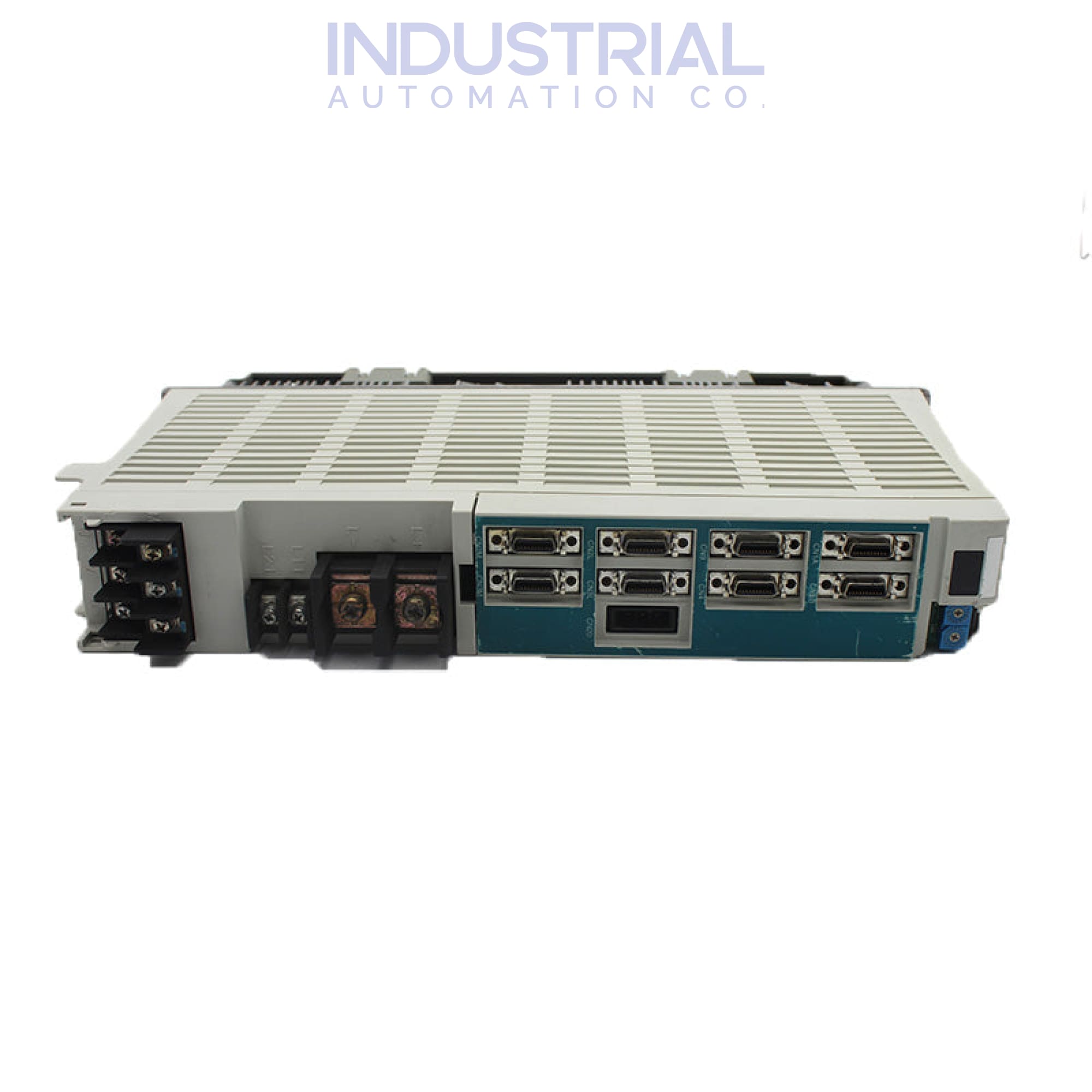

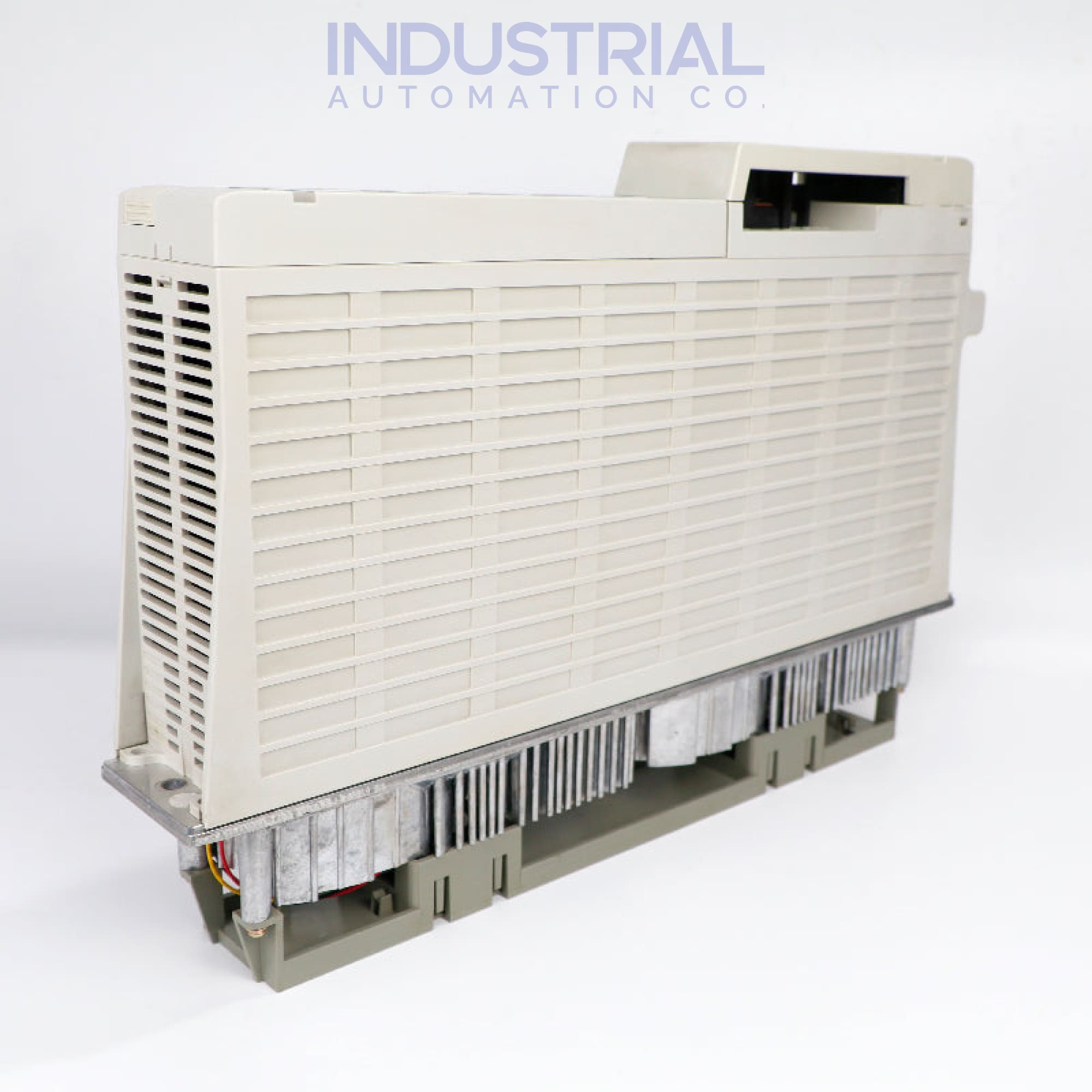

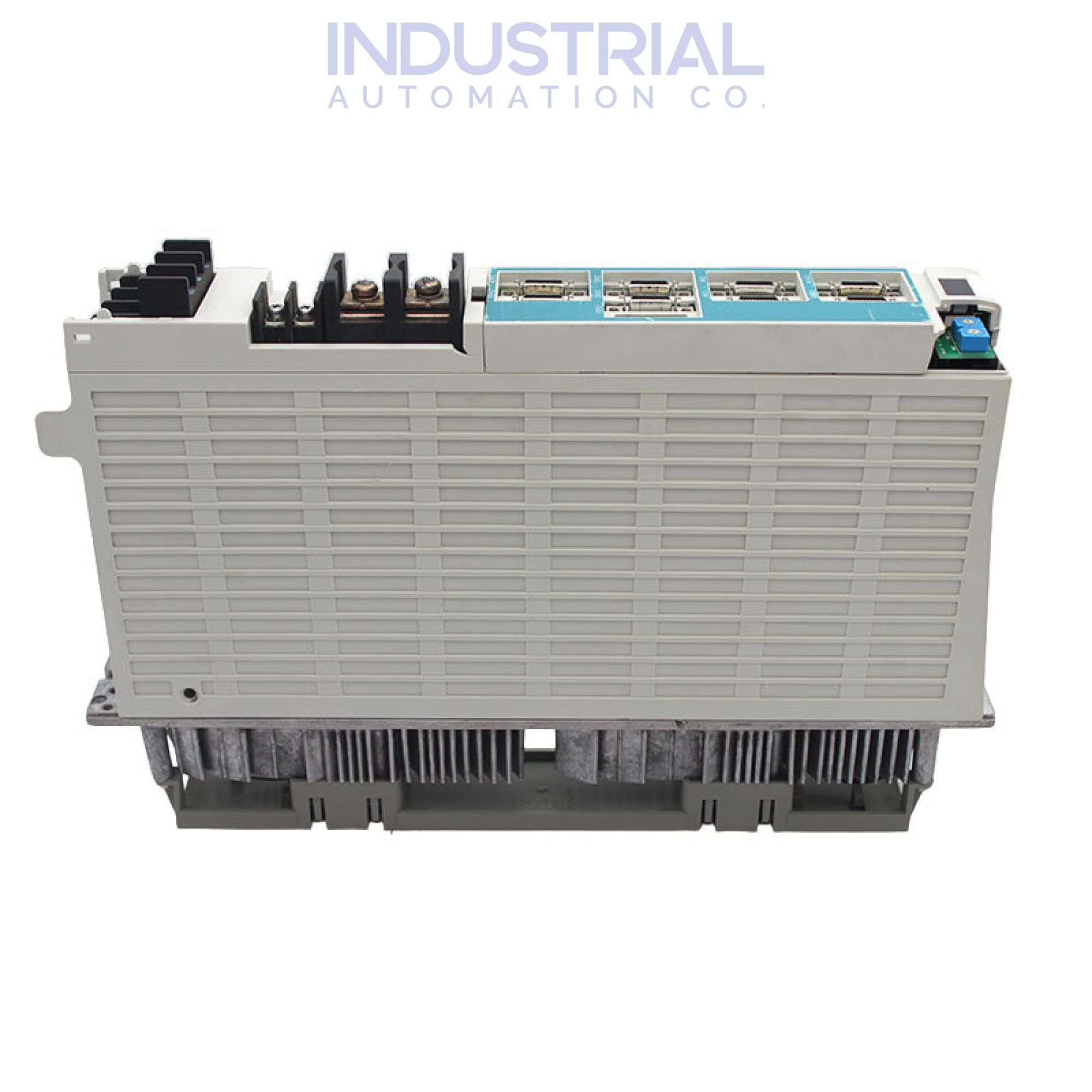

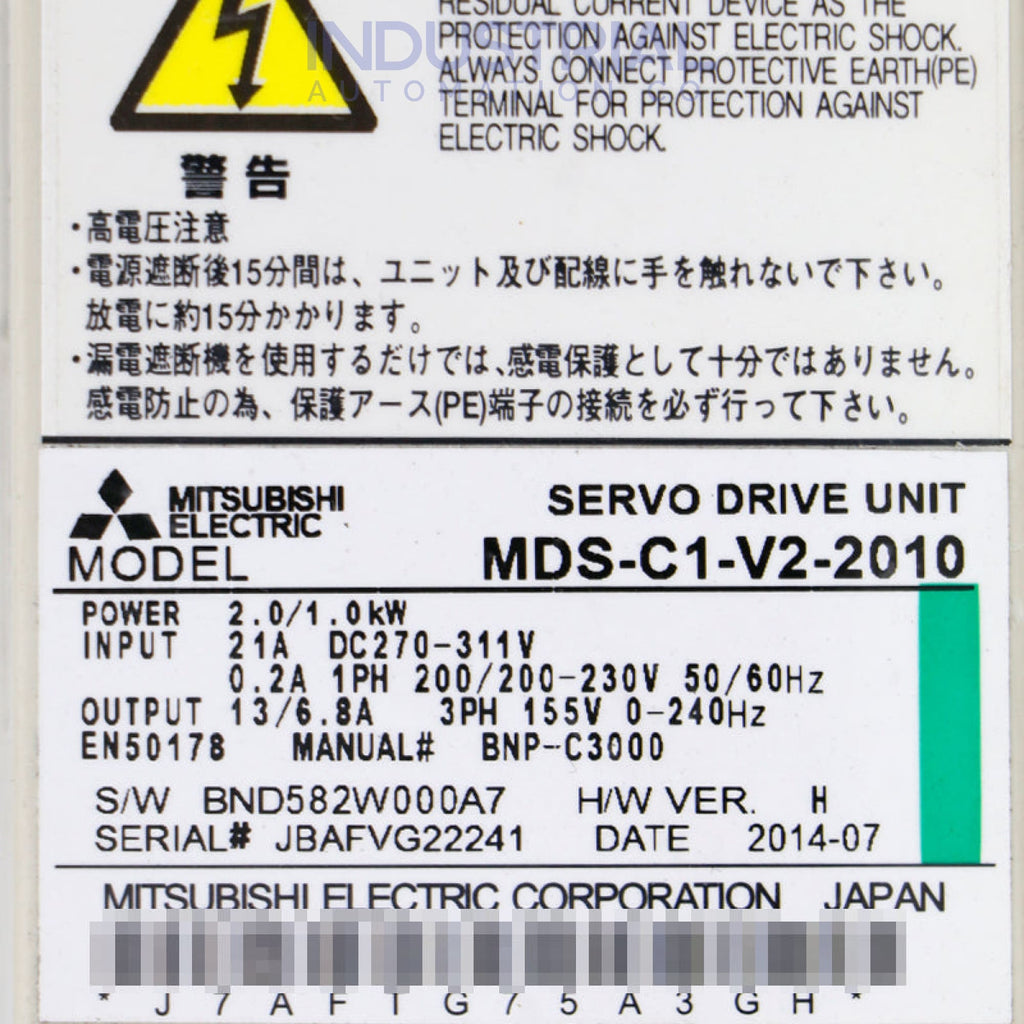

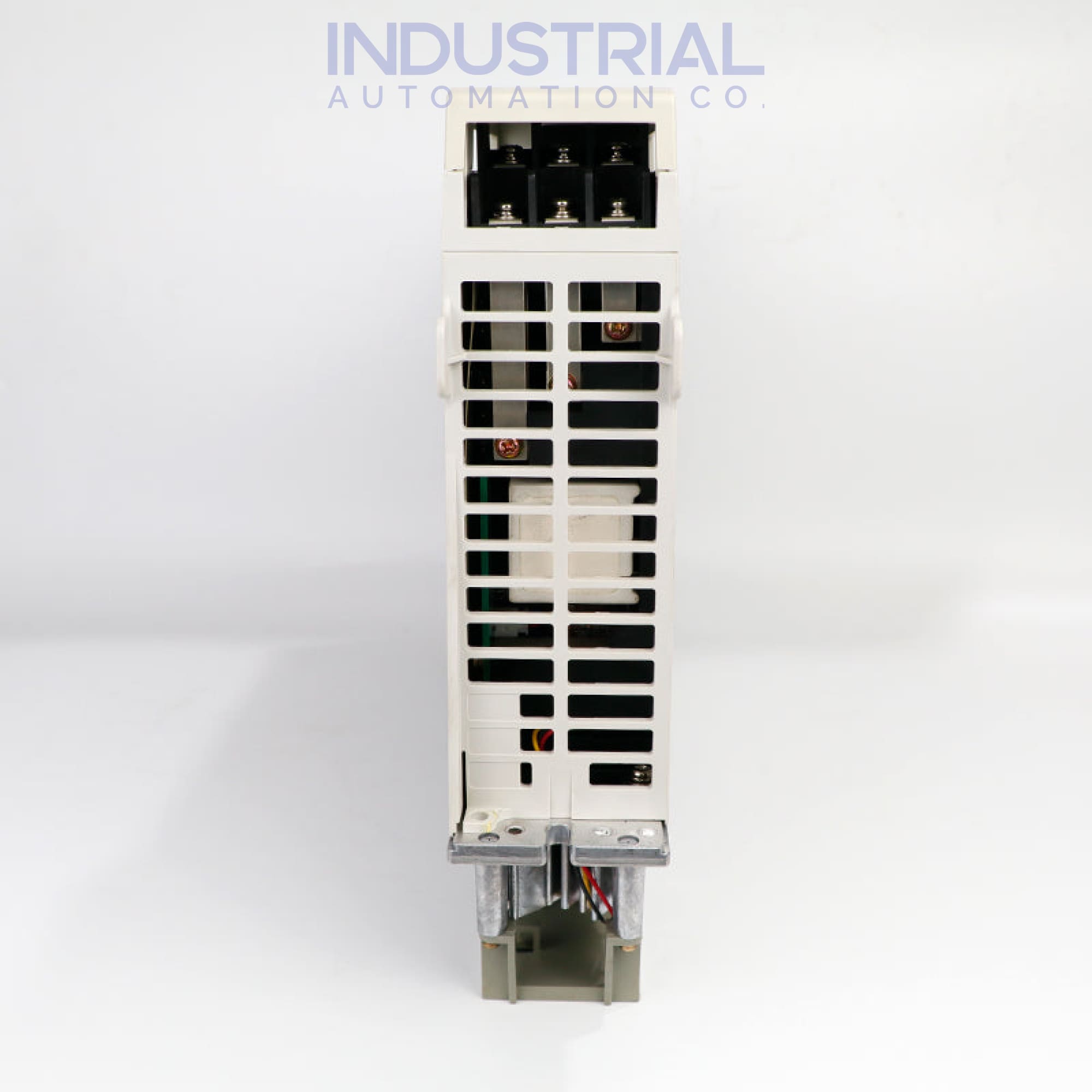

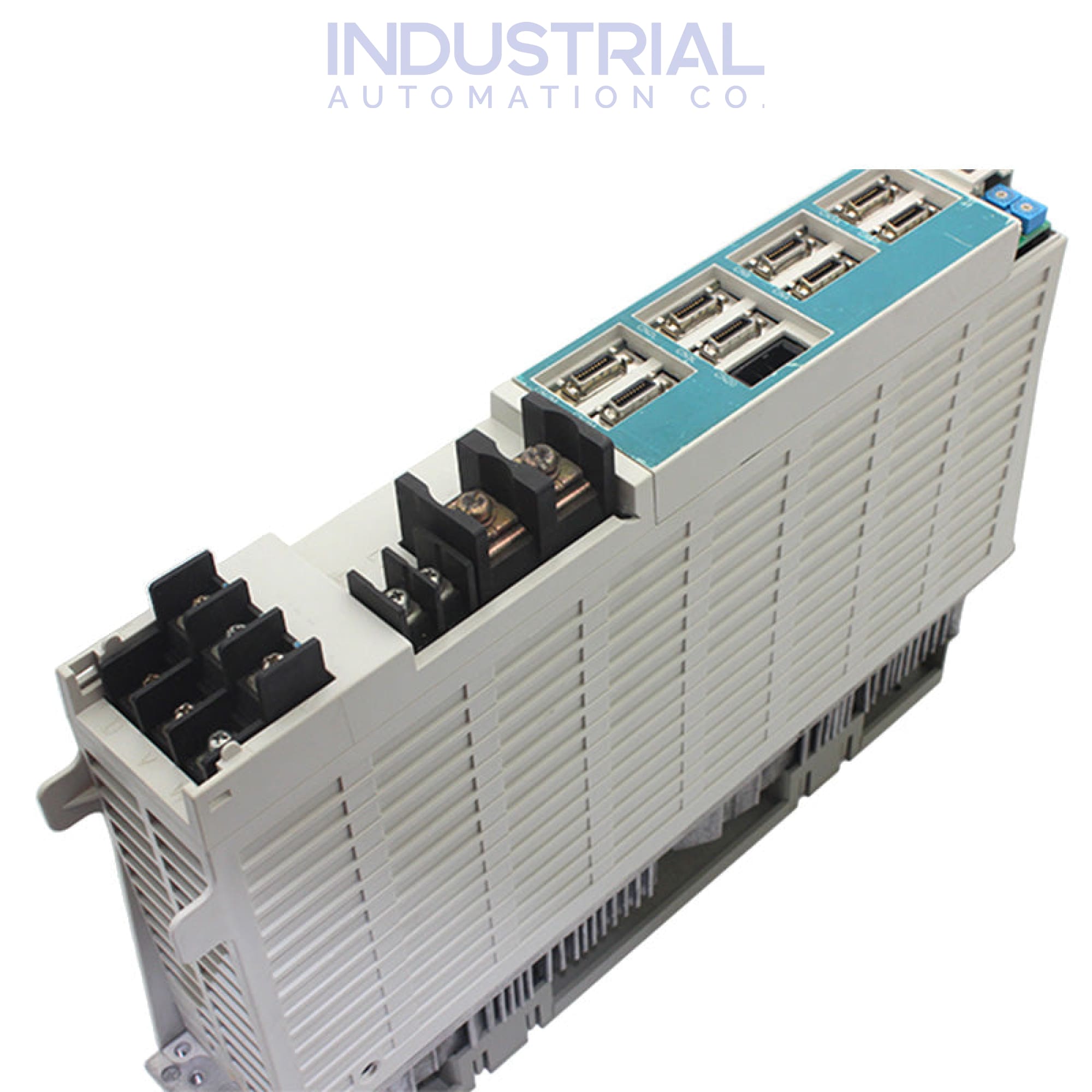

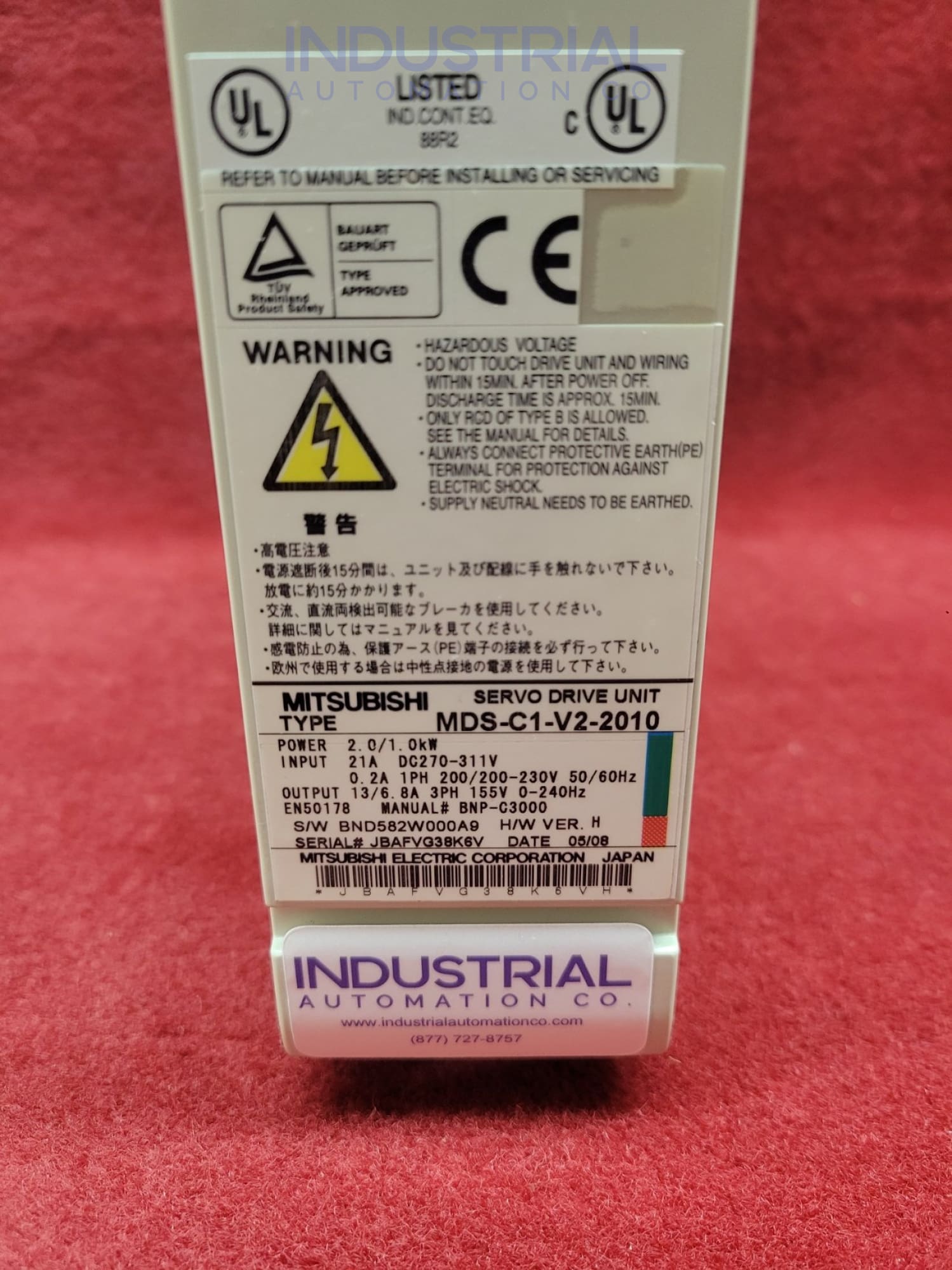

Mitsubishi MDS-C1-V2-2010

The Mitsubishi MDS-C1-V2-2010 is a robust and efficient servo drive unit designed for high-performance industrial applications. This servo drive unit, identified by its product code MDS-C1-V2-2010, is part of the MDS-C1 series known for its versatility and reliability in controlling servo and spindle motors. The unit is specifically engineered to meet the demanding requirements of modern manufacturing environments, providing precise control and improved productivity.

Key Features:

The MDS-C1-V2-2010 operates at 200-230 V AC at a 50/60 Hz frequency. The rated output power is 20kW. The MDS-C1-V2-2010 is built to offer high efficiency and reliable performance. It includes advanced features that ensure stable operation even in harsh industrial settings. The unit's design minimizes heat generation, which is crucial for maintaining consistent performance over long periods.

The servo drive unit is equipped with advanced control algorithms that enhance the precision and responsiveness of servo and spindle motors. It supports various control modes, including speed, torque, and position control, making it suitable for various applications.

The MDS-C1-V2-2010 offers versatile connectivity options, including multiple interfaces for seamless integration with other industrial automation systems. This connectivity ensures easy communication and coordination with other production line components, enhancing overall system efficiency.


The MDS-C1-V2-2010 features a rugged construction that can withstand the rigours of industrial environments. It includes protection against overcurrent, overvoltage, and overheating, ensuring the unit's longevity and connected motors. The unit is designed for easy maintenance, with accessible components and straightforward diagnostic capabilities. This ease of maintenance helps minimize downtime and keeps production lines running smoothly.

The drive unit should be operated at a maximum altitude of 1000m, and the temperature and humidity should be maintained at 0°C to 55°C and 90%RH or less, respectively. The temperature should be between -15°C and 70°C during transport and storage.


The MDS-C1-V2-2010 is suitable for various industrial applications, including machining centres, robotics, conveyor systems, and textile machinery. In machining centres, it provides precise control of spindle and servo motors, enhancing the accuracy and efficiency of operations.

In robotics, it ensures smooth and precise movements in robotic arms, improving the performance of automated tasks. It enhances the speed and accuracy of conveyor systems in the manufacturing and packaging industries. In textile machinery, it offers reliable control for high-speed machines, ensuring consistent product quality.

The Mitsubishi MDS-C1-V2-2010 servo drive unit is a high-performance, reliable, and versatile solution for industrial automation. Its advanced features make it an ideal choice for enhancing the efficiency and productivity of various industrial applications.

Frequently Asked Questions:

What protection features are included in the MDS-C1-V2-2010?

The MDS-C1-V2-2010 includes several protection features to ensure safe and reliable operation. These features include overcurrent protection, overvoltage protection, and overheating protection. These safeguards help prevent damage to the unit and connected motors in adverse conditions.

What types of control modes does the MDS-C1-V2-2010 support?

The MDS-C1-V2-2010 supports multiple control modes, including speed, torque, and position control. These control modes provide flexibility for various industrial applications, ensuring precise and efficient operation.

How does the MDS-C1-V2-2010 ensure easy integration with existing industrial systems?

The MDS-C1-V2-2010 has several communication interfaces to ensure seamless integration with various industrial systems. These include CN1A and CN1B connectors for NC bus connections, CN4 for power supply unit communication, CN2L and CN3L for control circuit connections, and CN9 for servo adjustment data output

Product Specifications Table:

Attribute Specifications
Input Voltage 200-230 V AC
Input Frequency 50/60 Hz
Control Modes Speed, Torque, Position
Communication Interfaces CN1A, CN1B, CN4, CN2L, CN3L, CN9
Protection Features Overcurrent, Overvoltage, Overheating
Ambient Temperature 0°C to 55°C
Ambient Humidity 90% RH or less (no dew condensation)
Storage Temperature -15°C to 70°C
Storage Humidity 90% RH or less (no dew condensation)
Altitude 1000m or less above sea level
