TECHNICAL SPECIFICATIONS

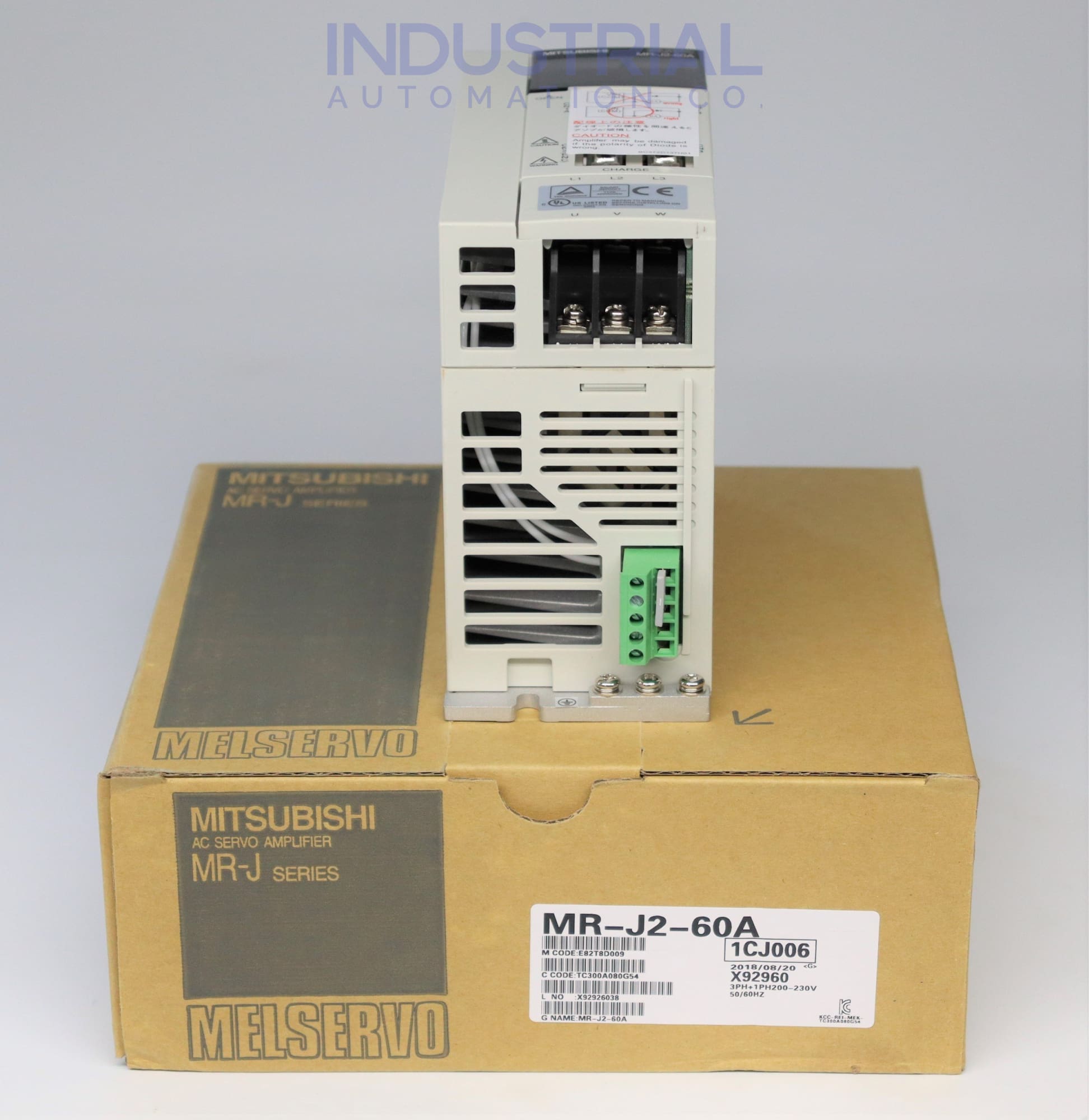

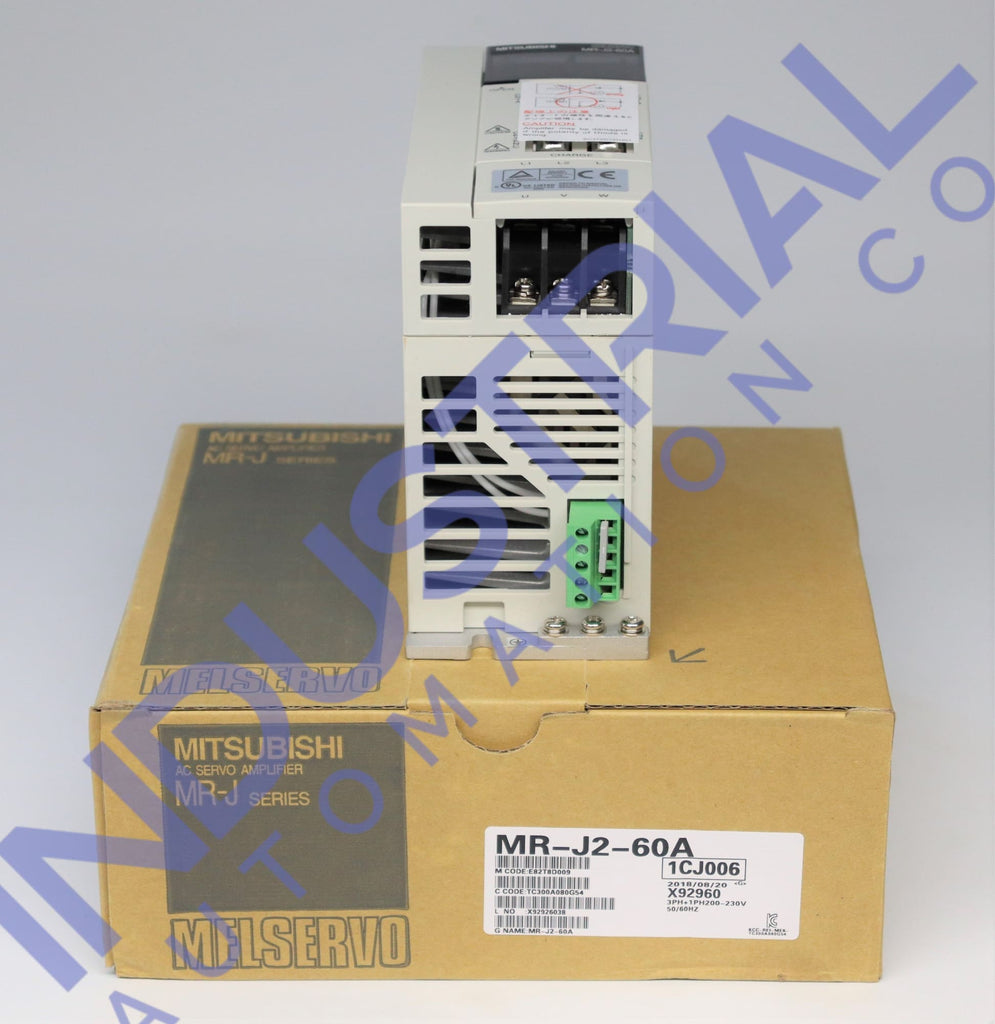

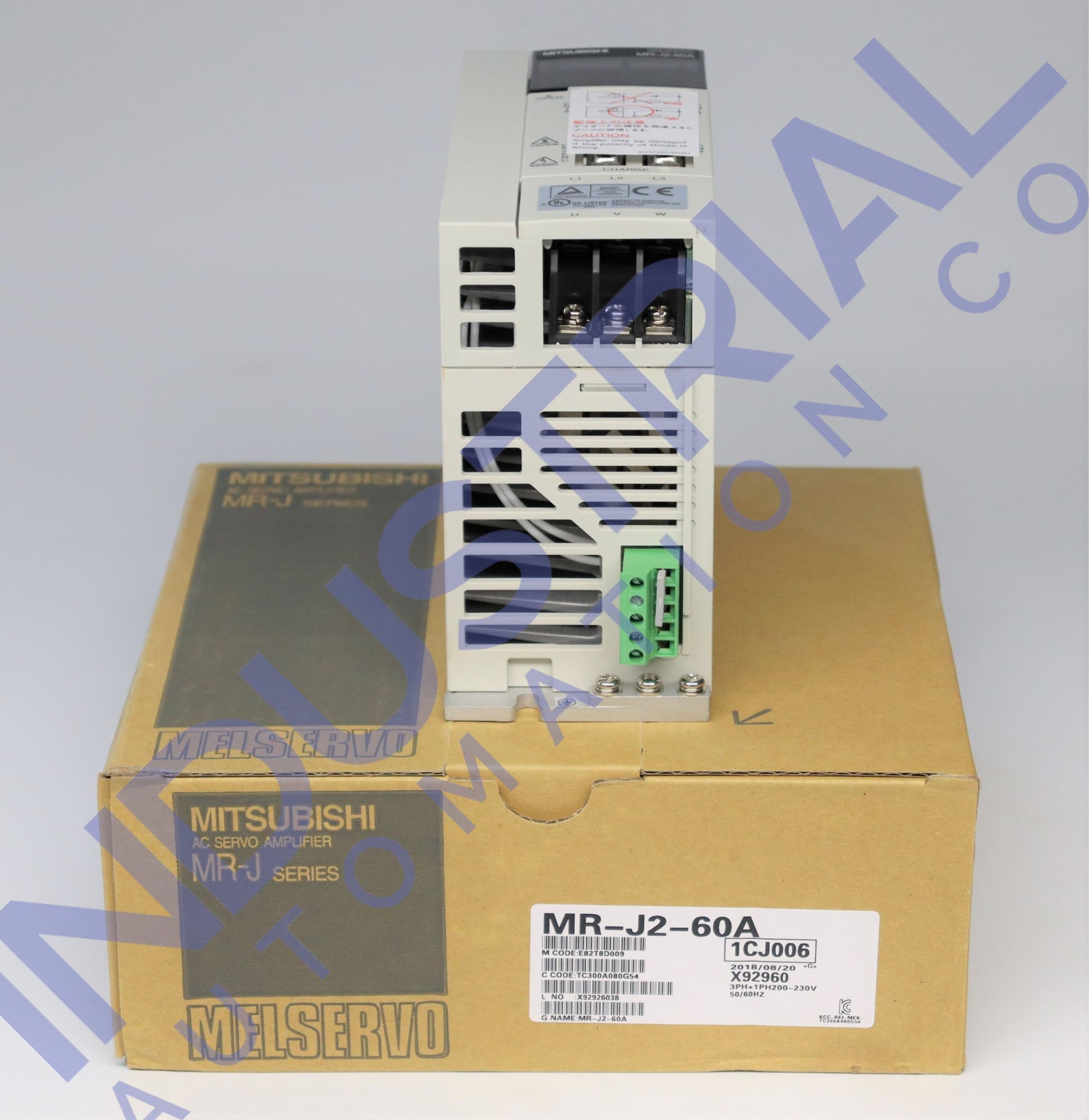

MR-J2-60A

This Mitsubishi’s J2 series servo amplifier MR-J2-60A offers the latest in cutting-edge technology and precision control, with integrated positional capabilities. This model is fully equipped to fulfill even your most demanding industrial requirements!

This model MR-J2-60A boasts a dynamic brake and is designed to run on either a three-phase voltage between 200 - 230 VAC or a single-phase voltage of 230 VAC with an operating frequency ranges from 50 - 60 Hz.

Technical Specifications of MR-J2-60A:

This model MR-J2-60A is equipped with a sine-wave PWM control and 250 Hz speed frequency response, offering the flexibility to create an optimized positioning system from scratch or improve existing systems.

This robust model MR-J2-60A is engineered with various protective functions to keep it running in peak condition. These include overcurrent cutoff, servo motor overheats protection, regenerative fault prevention for enhanced durability, under-voltage & overspeed protections, and excessive error avoidance measures.

In times of alert, emergency, or power loss, you can instantly stop the servo motor using the MR-J2-60A model’s dynamic brake. External I/O signals carry out communication operations for single-axis positioning systems, while RS-422 serial interface provides support with multi-drop operations.

The servo amplifier MR-J2-60A boasts an integrated electronic thermal relay, ensuring secure operation under overload conditions. Additionally, the accompanying user-friendly configuration software further improves its positioning capabilities.

The MR-J2-60A model offers precise speed control with an impressive range of 1:1000 via the analogue command and a remarkable ratio of 1:5000 through its internal system.

Clocking in at an ultra-light 1.1 kilograms, the model MR-J2-60A boasts a powerful 0 to -/+ 10 VDC maximum torque input limit and 400 kpps pulse frequency for differential receivers. The adjustable in-position range can be set anywhere between 0 to 10000 pulses – providing users with customizable precision that exceeds most expectations.

Operating and Installation Ambiance Conditions:

The servo amplifier MR-J2-60A delivers peak performance up to 1,000 meters above sea level. It is ideal for optimal storage in temperatures from -20 °C to +65°C and can handle relative humidity levels of up to 90% (non-condensing) when stored correctly.

To get the most out of your servo drive model, ensure it’s in a vertically-oriented control cabinet with an IP54 protection rating. It can operate effectively from 0°C up to 55 °C, provided its environment is free from dust and oil mist contaminants.

Ensure your single servo installation has 10mm of space on the sides and 40 mm at the top and bottom for optimal cooling. A fan is also essential to maintain an optimal climate within the control box environment.

To ensure proper installation of multiple servo drives into a control box, provide ample clearance - 100mm on the top and 40m at the bottom should do it. For additional safety measures, leave 30 mm of space along each side while leaving 10 mm between modules near its base.

Software Specification:

Personal computers can easily adjust parameters, display graphs and operate tests with the help of MRZJW3-SETUP31E or later setup software. This effective communication feature allows for quick and efficient system control.

The software ensures reliable communication through the RS-232C interface, comprehensively monitoring batch and high-speed displays. With features like jog mode for flexible operation, motorless control capabilities, and signal-triggered commands - the program uses advanced technology to maximize accuracy with every output.
