TECHNICAL SPECIFICATIONS

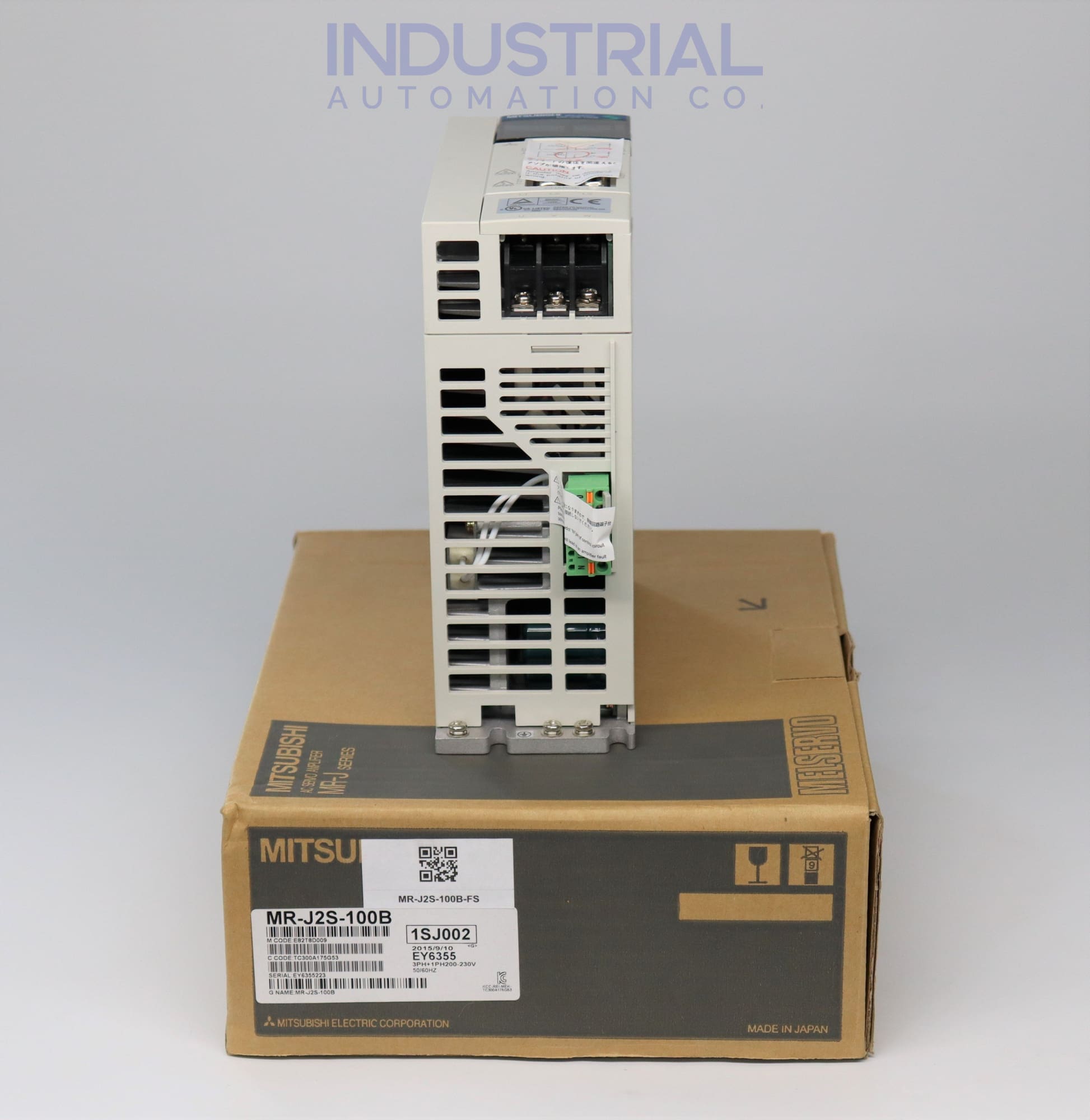

MR-J2S-100B

The model MR-J2S-100B is a several-purpose super series servo amplifier with exceptional performance and top-notch functionalities. Through a serial link, it communicates with a servo system controller or another device of a similar kind connected to it, which provides the position data to perform the required operation. The clamp circuit limits the servo amplifier MR-J2S-100B torque to protect the power transistor in the main circuit from rapid acceleration/deceleration or overload.

Technical Specifications of MR-J2S-100B:

If there is a change in the load on the servo motor, the model MR-J2S-100B auto-tuning function will readjust the gain to its optimal setting. An encoder with a resolution of 131072 pulses per revolution is included in the design of the model in question. The encoder is suitable for use with servo motors. The model's three-phase power supply accepts input between 200 and 230 VAC. The model has an adaptive vibration suppression mechanism, which can detect mechanical vibrations and automatically modify the filter parameters to suppress them. Because the servo amplifier MR-J2S-100B absolute position detecting mechanism only requires a home position to be set once, it doesn't need to be reset each time the power is turned on.

The model includes a dynamic brake and current control system. The 1.7-kilogram servo amplifier has several protection features, including an Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal relay), encoder error prevention, Undervoltage protection, instantaneous power failure protection, and Overspeed protection. To prevent high-frequency resonance from occurring as a result of amplifying the servo system's response, a low-pass filter is included in the MR-J2S-100B servo amplifier.

Permissible Operating and Installation Conditions:

The servo amplifier is a compassionate piece of equipment and should never be dropped or mishandled in any way. When used with a specified servo motor model, the servo amplifier MR-J2S-100B can only reach its full potential. The model can be used in temperatures between 0 and +55 degrees Celsius and stored between -20 and +65 degrees Celsius. RH (relative humidity) levels in the workplace and storage facility can approach a maximum of 90%.

Due to the low protection class (IP00), the servo amplifier MR-J2S-100B must be installed in a control box with an adequate protection rating. The temperature within the control cabinet can be maintained by installing a fan. Sealing the control cabinet's openings that could permit oil, moisture, metallic grit, etc., into the servo amplifier MR-J2S-100B is essential for keeping it in pristine condition. The optimal mounting configuration of the model is vertical since this ensures the best performance and minimizes vibrations. Furthermore, only a trained expert should do the installation.

General Usage Instructions:

Everyone working on maintenance and fixing the model MR-J2S-100B must be capable of doing so. If the model will be used near electrical equipment, use a noise filter to lessen the impact of electromagnetic interference. The servo amplifier's electrolytic capacitor will break down after some time. The electrolytic capacitor should be replaced every 10 years in the general environment to avoid a subsequent mishap due to a defect. The model MR-J2S-100B is created as a product for usage in a wide range of industries. It was not made to be integrated into anything with direct human-life consequences.
