TECHNICAL SPECIFICATIONS

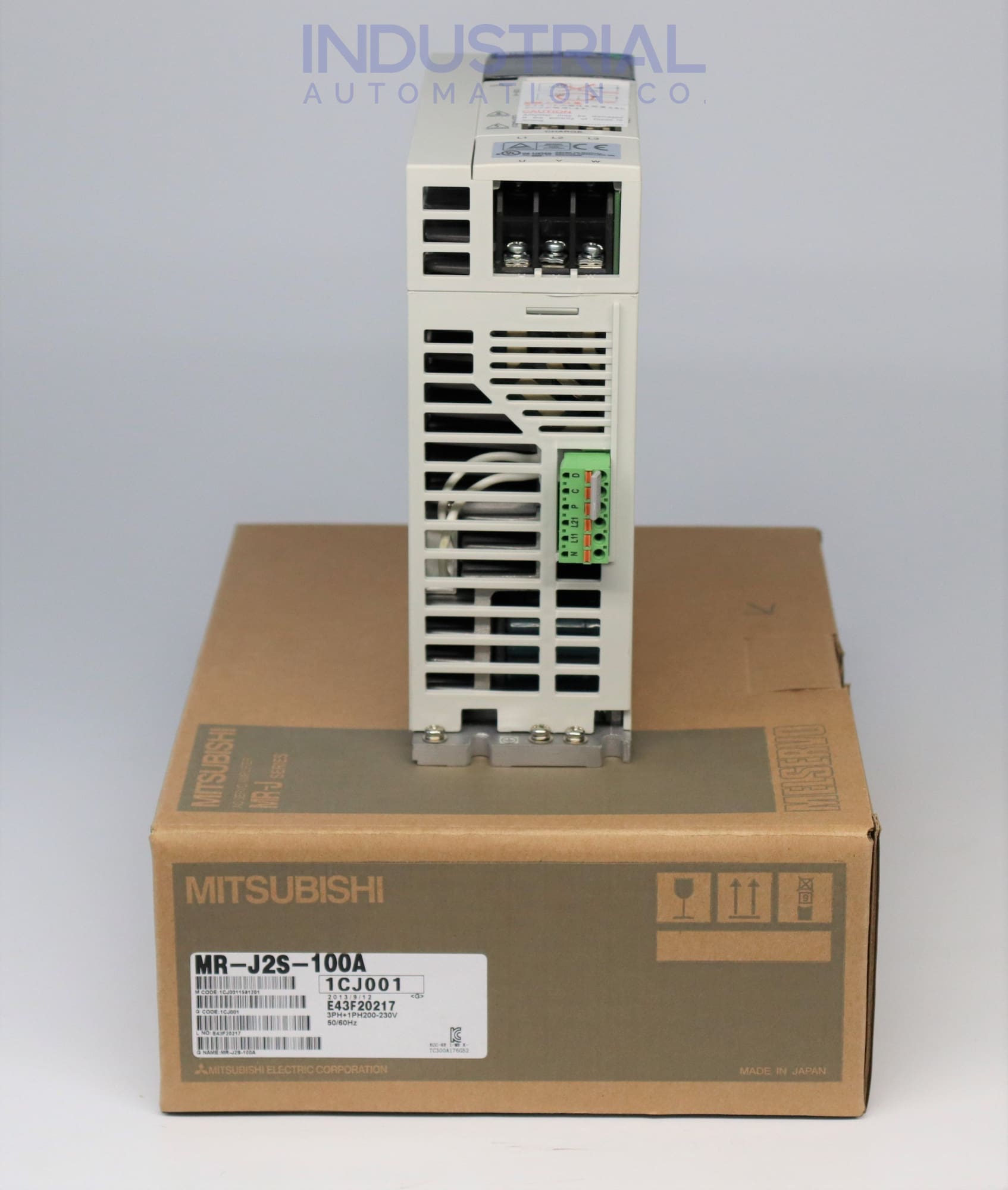

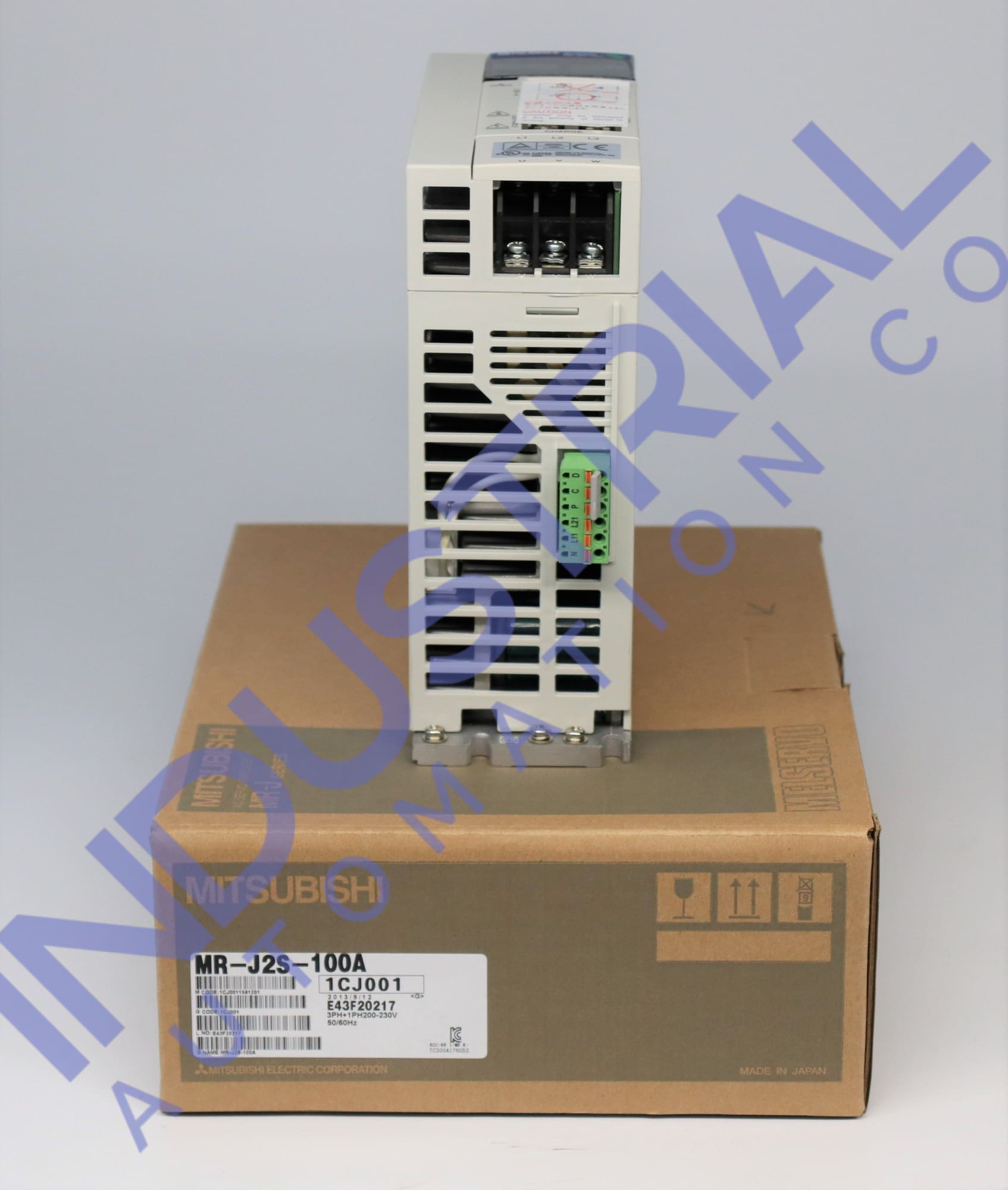

MR-J2S-100A

Mitsubishi’s servo drive model MR-J2S-100A is suitable for several applications and utilizes natural convection to effectively manage its heat output. It ensures the device housing remains at an acceptable temperature during operation.

The sophisticated servo amplifier MR-J2S-100A boasts three powerful modes: position control, speed control, and torque control. Accurate positioning is achieved for optimal performance through high-speed pulse trains to regulate a motor’s rotational direction and rate.

Technical Specifications of MR-J2S-100A:

The MR-J2S-100A model’s three-phase voltage supply has a wide operating range of 207 to 253 VAC, allowing it to operate in position control, speed control, and torque control modes.

This model offers robust protection features to ensure a reliable, efficient operation. A range of safeguards is in place, including overcurrent cutoff and regenerative overvoltage cutoffs for safe primary power use, encoder error detection, and protections against sudden loss of energy or excessive speed.

This model MR-J2S-100A supports advanced speed and torque command requirements with input voltages ranging from 0 to 10 VDC for speed and 0- 8 VDC for torque. It is also tolerant of varying line power supply ranges between 170 - 253 VAC and frequencies that fluctuate up to 5%.

The position control mode can process pulses at an astonishing rate of 200,000 per second. The differential receiver conquers even more with a maximum capacity of 500,000 kpps. Ranging from 1:2000 to 1:5000, speed regulation can be easily adjusted externally and internally, allowing complete customization of your device’s performance.

This sleek 1.7kg model MR-J2S-100A is equipped with a dynamic brake and current control system, allowing users to set their desired torque speed range between 0-10 VDC through either parameter setting or external analog input.

Operating and Installation Conditions:

There’s no room for error when installing the single servo amplifier MR-J2S-100A. The unit should be placed in an appropriately rated control cabinet with 40mm of clearance above and 10 mm on each side - to ensure it works properly as designed.

For optimal temperature control within the cabinet, create ample space between the servo amplifier and its interior walls. Without this precautionary measure, temperatures will exceed external levels due to insufficient air circulation.

This model MR-J2S-100A is ideal for temperatures between 0 and +55° Celsius, however, one can store it in extreme conditions ranging from -20 to +65°. The relative humidity of the work area must not exceed 90%.

To ensure optimal performance and longevity of the model, it’s recommended that installation is completed solely by a trained expert in an upright position free from vibration or any potential disturbances.

General Cautionary Information

Electrolytic capacitors in servo amplifiers are a common component with an expiration date of around ten years. Regular maintenance and replacement are important to ensure your system is running at full capacity to avoid costly problems down the road.

The model MR-J2S-100A has been engineered as a multifaceted solution, offering compatibility with multiple industries and applications. Careful consideration was taken to ensure that the model cannot be used for any purpose related to harm or injury to human life.

The servo amplifier (MR-J2S-100A) is subject to extensive testing throughout production, guaranteeing its top-tier quality. Fail-safes and backups are critical to minimize the risk of harm or loss in critical systems, so that malfunctioning doesn’t occur should any parameters be over-tampered with.
