TECHNICAL SPECIFICATIONS

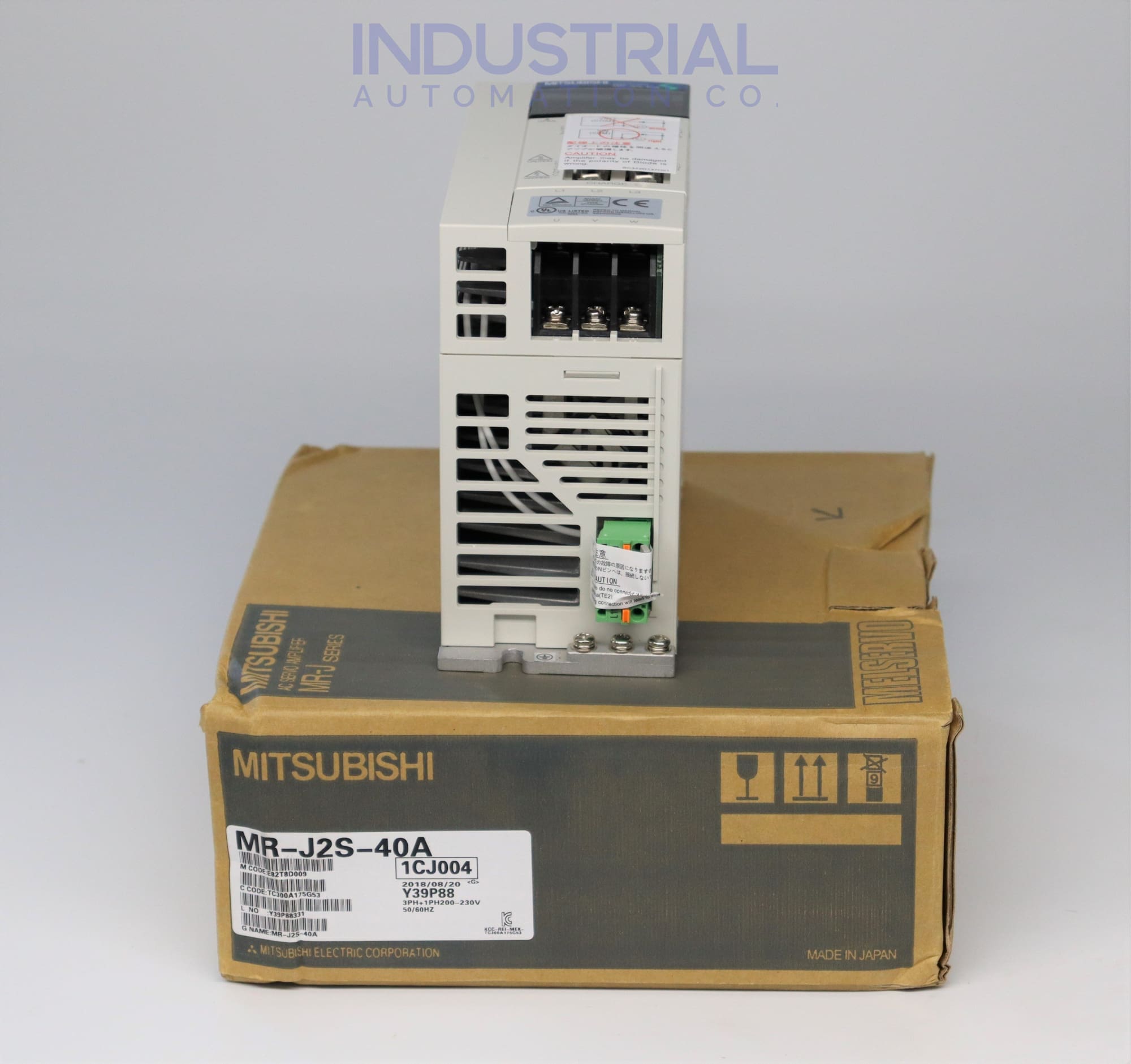

MR-J2S-40A

This powerful servo drive MR-J2S-40A offers a versatile solution for any application. Its ability to rapidly switch between position, speed, and torque control modes makes it an ideal choice for reliably controlling mechanical systems with precision and accuracy.

This model MR-J2S-40A is designed with a robust suite of protective features to ensure reliable, consistent operation. It includes an overcurrent cutoff and regenerative overvoltage cutoff and safeguards against encoder errors, potential power outages, or excessive speed conditions.

Technical Specifications of MR-J2S-40A:

This 1.1-kilogram model MR-J2S-40A is equipped with a dynamic brake and current control system to accommodate its three-phase power supply, which runs on 170 to 253 VAC voltage range while remaining tolerant of up to 5% frequency changes. Furthermore, it features optimized temperature regulation through natural convection within the housing unit for improved performance longevity.

The servo amplifier MR-J2S-40A can be adjusted to different control modes providing precise rotational speed and direct regulation of a motor. It is powered by single-phase voltage 200 VAC, ensuring the reliability of its operations for many applications.

The position control mode offers a powerful capacity to process up to 200 kpps of pulse frequency input. Furthermore, the differential receiver can handle even more with its 500 kpps threshold - an impressive level of processing power.

The precision performance of analog speed and torque command inputs offer superior control capabilities for an extensive range of voltage settings. Speed commands are optimized between 0 - +/- 10 VDC, while torque commands can be adjusted from 0 to +/- 8 VDC.

Further, one can get flexibility with the ability to adjust parameters or use external analog input in determining the system's velocity maximum – up to +/10VDC.

Operating and Installation Conditions:

This model MR-J2S-40A operates optimally in a temperature range from 0 to +55 degrees Celsius and can be stored at temperatures between -20 and +65 degrees Celsius. It also withstands extremely high relative humidity levels, up to 90%.

To ensure peak performance, an experienced specialist must be present for the installation process. The device should then be placed in an upright and stable location to minimize any disruption from external vibration sources.

For optimal performance, a single servo amplifier requires 40 mm of clearance above and 10 mm on each side when placed inside a control cabinet with the appropriate protective class.

To ensure the servo amplifier (MR-J2S-40A) will operate at its best, maintaining ample space is important between it and the control cabinet walls; this helps keep temperatures above ambient levels.

General Cautionary Information

The model MR-J2S-40A was designed as a versatile component for applications across various industries, ensuring that people won't use it to cause harm to human life.

Electrolytic capacitors are a reliable and efficient component in servo amplifiers. However, with regular use lasting for up to 10 years, it is essential to swap out the capacitor periodically as preventive maintenance to avoid any potential operational hiccups down the line.

Strict regulation and stringent testing ensure that the servo amplifier is of superior quality. One should not do unapproved modifications to its parts or components, as this may compromise the machine's performance capabilities. In addition, excessive tampering with the model parameters can adversely affect reliability and safety standards.

When installing the product (MR-J2S-40A) in critical areas (where any device failure could cause irreversible damage), it's important to follow careful measures along with comprehensive backup and failsafe procedures.
