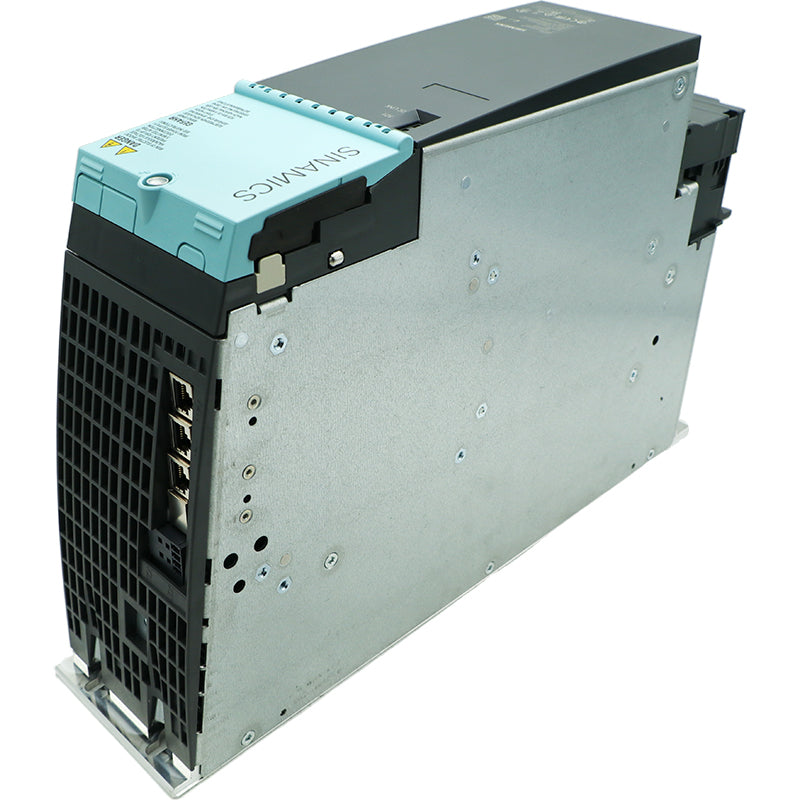

An industrial-grade motor module, the Siemens 6SL3120-1TE24-5AC0, is built to withstand tough conditions. Its small size and sophisticated control capabilities make it ideal for places with limited space. This module guarantees top-notch performance and dependability by conforming to exacting industrial requirements.

Technical Specifications:

This Siemens 6SL3120-1TE24-5AC0 operates from 510 to 720 V DC link voltage and has a rated output current of 60.0 A. While the rated value for IN is 45.0 A, the base load current (IH) is 38.0 A. This circuit board can handle a DC 24 V power source with a range of -15% to +20% and a maximum current requirement of 0.90 A.

The module's current output is IS6 at 54.0 A, and its peak current Imax is 200 A when the S6 duty is set at 40%. According to IH, this results in a DC-link current of 20 A. The input current determines a pulse frequency of 4.00 kHz and a type rating of 24.0 kW.

An extra 24 V DC connection is required since the current carrying capacity of the 24 V busbars included in the module is greater than 20 A. The 1230 µF DC link capacitance is the value. The output frequency for servo control is 650 Hz, vector control is 300 Hz, and V/f control is 600 Hz.

Mechanical Specifications:

The Siemens 6SL3120-1TE24-5AC0 has dimensions of 270.00 mm high, 100.00 mm wide, and 380.00 mm deep. The module has a net weight of 8.5 kg and is rated IP20 or UL open.

Its book-size C-type frame allows for space-efficient installation. An internal air conditioning system keeps temperatures optimal. The sound pressure is 71.0 dB at one meter.

The module performs well at ambient temperatures ranging from 0 to 40 °C (32 to 104 °F) and altitudes up to 1000 m (3281 ft) without derating. The average power loss for this motor module, including losses from the 24 V DC electronics power supply, is 0.34 kW, with a maximum of 0.35 kW.

Rated Specifications:

The Siemens 6SL3120-1TE24-5AC0 offers motor cable lengths of up to 100 m for shielded cables and 150 m for unshielded cables. The PE connection employs an M6 screw, while the motor end version employs an M6 bolt (X1). It can accept conductor cross-sections from 3 to 50 mm².

The module meets safety standards such as IEC 61508, SIL 2, PL d, and Category 3 of EN ISO 13849-1. It also fulfills CE and cULus standards, which ensures widespread regulatory compliance. The module also includes dynamic braking capabilities. This function enables rapid motor deceleration, which is critical for applications that require precise control and quick stops.

Its integrated fault diagnosis technology speeds up fault detection and repair, saving downtime. The module supports PROFIBUS and PROFINET for easy integration into industrial networks. Overvoltage, undervoltage, and short-circuit protection improve operational safety.

Frequently Asked Questions:

For the Siemens 6SL3120-1TE24-5AC0, what is the longest possible motor cable length?

The 6SL3120-1TE24-5AC0 from Siemens can handle shielded wires up to 100 meters long. The maximum size for cables without shielding is 150 meters.

What is the Siemens 6SL3120-1TE24-5AC0's approach to safety regulations?

Regarding safety, the Siemens 6SL3120-1TE24-5AC0 meets all three standards: SIL 2 per IEC 61508, PL d per EN ISO 13849-1, and Category 3 per EN ISO 13849-1. It is also certified by cULus and CE.

How high is the Siemens 6SL3120-1TE24-5AC0's rated pulse frequency?

The rated pulse frequency of the Siemens 6SL3120-1TE24-5AC0 is 4.00 kHz. Motor control and efficiency are guaranteed at this frequency.

Product Specifications Table:

Attribute Specification
Output Current 60.0 A
DC Link Voltage 510 - 720 V
Base Load Current IH 38.0 A
Rated Value IN 45.0 A
Electronics Power Supply DC 24 V -15% / +20%
Current Demand, Max 0.90 A
For S6 Duty (40%) IS6 54.0 A
Imax 200 A
DC-Link Current Id 20 A (Based on IH)
Type Rating 24.0 kW (Based on IN)
