Description

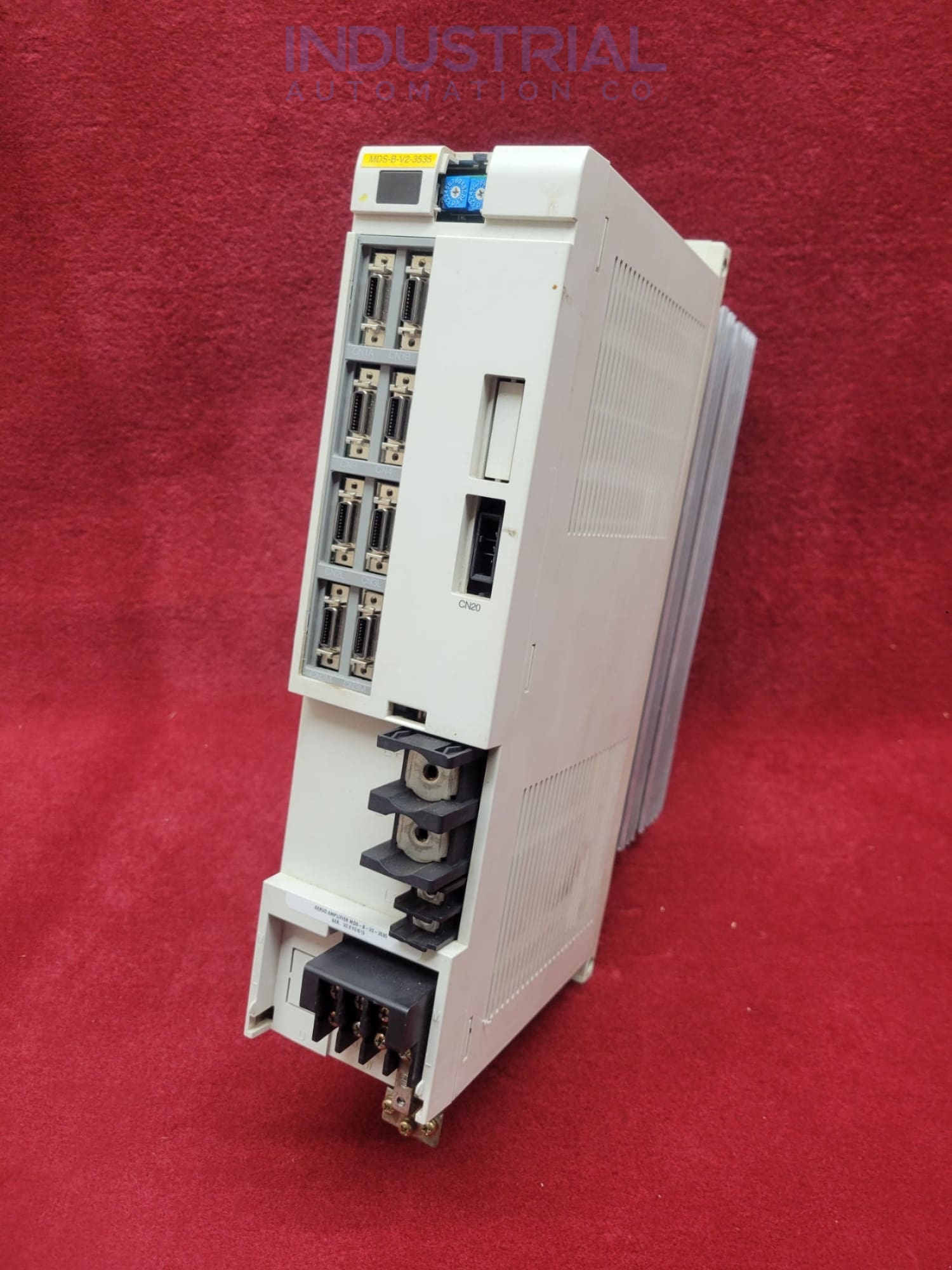

Mitsubishi MDS-B-V2-3535

The Mitsubishi MDS-B-V2-3535 is a two-axis AC servo drive with a maximum torque capacity of 59.821 Nm. This servo drive is designed for precise control and high efficiency in industrial applications. It offers reliable operation in a wide range of conditions. The intelligent power module ensures efficient power conversion for supporting high-speed and high-precision applications.

Control and Circuit Systems:

The control system uses a sine wave PWM system, which ensures smooth and precise motor control. The main circuit system is a transistor inverter with an intelligent power module using IGBT to provide reliable and efficient power conversion.

The drive features both regeneration and dynamic braking systems. Regeneration braking helps save energy during deceleration, while dynamic braking ensures quick and safe stopping. These braking systems enhance the drive's performance and safety in various applications.

The MDS-B-V2-3535 operates effectively within a temperature range of 0 to 55 °C. For storage, the tolerable temperature range is -15 to 70 °C. This wide range of tolerable temperatures makes it suitable for diverse industrial environments.

Environmental and Physical Specifications:

It can withstand vibrations up to 4.9 m/s ² (0.5G) and shocks with an acceleration of 49 m/s ² (5G). The design of the MDS-B-V2-3535 ensures stable operation even under challenging conditions. The 6.0 kg drive is compact and easy to handle during installation.

The torque limit range is less than 2.5 times the motor inertia, providing efficient and responsive performance. Noise emission is maintained below 55dB, which makes it suitable for noise-sensitive areas.

The robust design meets industrial standards for durability. The servo drive is easy to integrate into existing systems. Its compact size facilitates installation in limited spaces, making it versatile for various setups. It is a product of Mitsubishi, which is a renowned global giant known for its diverse range of products, including automobiles, electronics, and advanced industrial equipment.

Operation and Performance:

It supports motors such as HA200N, HA100N, HA300NL, and HA200NL. The output voltage of the drive is 155V. Its rated output current is 16A, with a continuous output current of 25A. The maximum output current reaches up to 57A.

The MDS-B-V2-3535 is suitable for various industrial applications to ensure precise position control and efficient performance. The intelligent power module enhances reliability and efficiency, making it a dependable choice for automation systems.

The dual-axis design offers flexibility and reduces equipment footprint. Regeneration braking provides energy savings during deceleration. Dynamic braking ensures quick and safe stopping for enhancing operational safety.

It is designed for use in clean industrial environments. The servo drive's low noise level makes it suitable for noise-sensitive areas. Its ability to handle high shock and vibration ensures stable operation.

Frequently Asked Questions:

What is the power capacity of the MDS-B-V2-3535?

The MDS-B-V2-3535 has a power capacity of 3.5 kW per axis, totalling 7.0 kW. This makes it suitable for various industrial applications requiring efficient and responsive performance.

How does the MDS-B-V2-3535 handle braking?

The MDS-B-V2-3535 features both regeneration and dynamic braking systems. Regeneration braking helps save energy during deceleration, while dynamic braking ensures quick and safe stopping, enhancing operational safety.

What environmental conditions can the MDS-B-V2-3535 tolerate?

The MDS-B-V2-3535 operates effectively in temperatures from 0 to 55 °C and can be stored in temperatures from -15 to 70 °C. It handles up to 90% humidity during operation and 95% during storage, with no harmful gases or dust.

Product Specifications Table

Attribute	Specifications
Maximum Torque Capacity	59.821 Nm
Control System	Sine wave PWM system
Main Circuit System	Transistor inverter (Intelligent power module using IGBT)
Braking	Regeneration brake and dynamic brake
Operation Temperature	0 to 55 °C
Storage Temperature	-15 to 70 °C
Tolerable Ambient Humidity	90% or less (with no dew condensation)
Weight	6.0 kg
Power Rating	3.5 kW
Rated Output Current	16 A
